POWER BRAKE UNIT REMOVAL/INSTALLATION (L.H.D.)
id041100803700
1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF, L5].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
3. Remove the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
4. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)
5. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)
6. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)
7. Remove the insulator. (L8, LF, L5)
am6zzw00001875
|
8. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].)
9. Remove the EPS control module. (See EPS CONTROL MODULE REMOVAL/INSTALLATION.)
10. Remove the EPS control module bracket. (See EPS CONTROL MODULE REMOVAL/INSTALLATION.)
11. Remove in the order indicated in the table.
12. Remove the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION.)
13. Install in the reverse order of removal.
14. After installation, inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

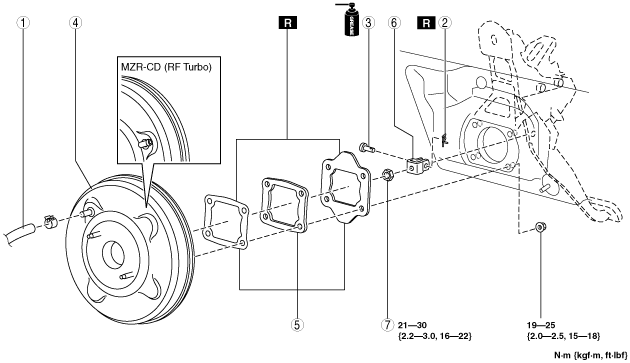

am6zzw00004290
|
|
1
|
Vacuum hose
|
|
2
|
Snap pin
|
|
3
|
Clevis pin
|
|
4
|
Power brake unit
|
|
5
|
Gasket, plate
|
|
6
|
Fork
|
|
7
|
Locknut
|
Power Brake Unit Removal Note

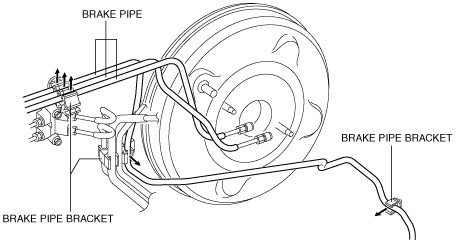

1. Perform the following procedure to move the brake pipes.
am6zzw00001631
|
am6zzw00001632
|
2. Remove the power brake unit while moving the brake pipes located around the power brake unit towards the vehicle front.
