FUEL SYSTEM LOCATION INDEX [13B-MSP]

id0114z2800100

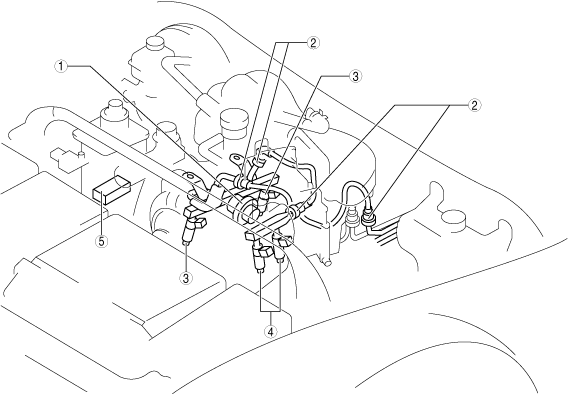

Engine Compartment Side

ar8jjw00002525

1	Pulsation damper (See PULSATION DAMPER REMOVAL/INSTALLATION [13B-MSP].) (See PULSATION DAMPER INSPECTION [13B-MSP].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [13B-MSP].)
3	Fuel injector (FS, RS) (See FUEL INJECTOR REMOVAL/INSTALLATION [13B-MSP].) (See FUEL INJECTOR INSPECTION [13B-MSP].)
4	Fuel injector (FP, RP) (See FUEL INJECTOR REMOVAL/INSTALLATION [13B-MSP].) (See FUEL INJECTOR INSPECTION [13B-MSP].)
5	Fuel pump resistor (See FUEL PUMP RESISTOR REMOVAL/INSTALLATION [13B-MSP].) (See FUEL PUMP RESISTOR INSPECTION [13B-MSP].)

Fuel Tank Side

ar8jjw00002526

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [13B-MSP].) (See FUEL TANK INSPECTION [13B-MSP].)
2	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [13B-MSP].)
3	Nonreturn valve (See NONRETURN VALVE INSPECTION [13B-MSP].)
4	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [13B-MSP].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [13B-MSP].) (See FUEL PUMP UNIT INSPECTION [13B-MSP].)
