DASHBOARD DISASSEMBLY/ASSEMBLY
id091700800400
1. Remove the following parts:
- (1) Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
- (2) Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
- (3) Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)
- (4) Speaker grill (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
- (5) Center speaker (See CENTER SPEAKER REMOVAL/INSTALLATION.)
- (6) GPS antenna (Vehicles with car navigation system) (See GPS ANTENNA REMOVAL/INSTALLATION.)
- (7) Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)
- (8) Driver-side demister grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
- (9) Passenger-side demister grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
- (10) Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
- (11) Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

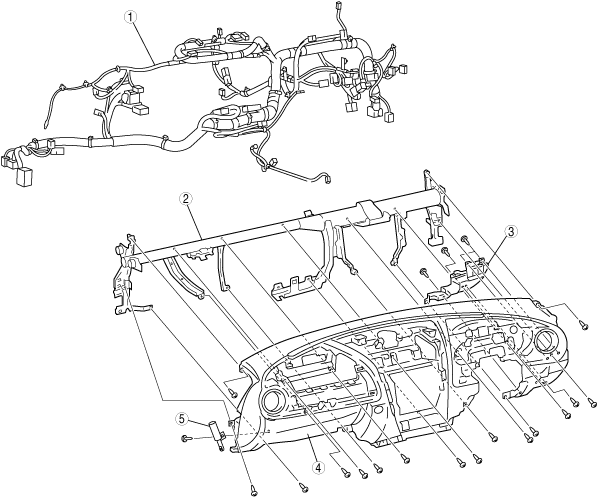

L.H.D.

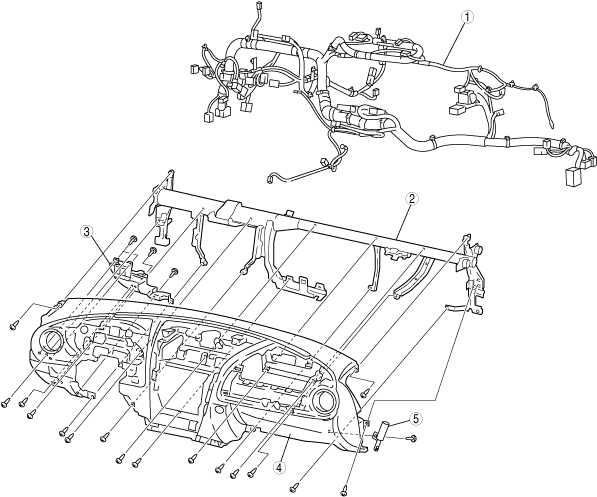

R.H.D.
|
1
|
Dashboard wiring harness
|
|
2
|
Dashboard member
|
|
3
|
Panel
|
|
4
|
Dashboard
|
|
5
|
Glove compartment damper
|
