GPS ANTENNA REMOVAL/INSTALLATION
id092000801500
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Shift lever knob (MT) (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)
- (2) Shift knob (AT) (See SELECTOR LEVER REMOVAL/INSTALLATION.)
- (3) Console (See CONSOLE REMOVAL/INSTALLATION.)
- (4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (5) Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (7) Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
- (8) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (9) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (10) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
- (11) Center panel unit (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
- (12) Steering shaft installation nuts (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
- (13) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (14) TCM (AT) (See TCM REMOVAL/INSTALLATION [SJ6A-EL].)
- (15) A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See A/C AMPLIFIER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
- (16) Auto light/wiper control module (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.)
- (17) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

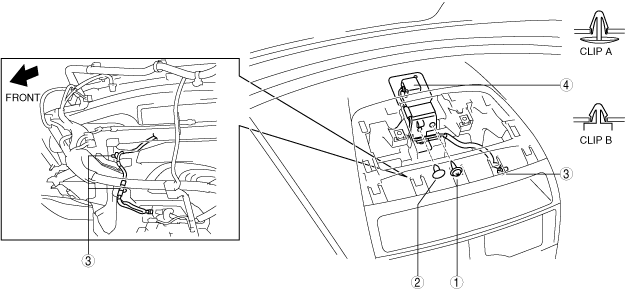

L.H.D.

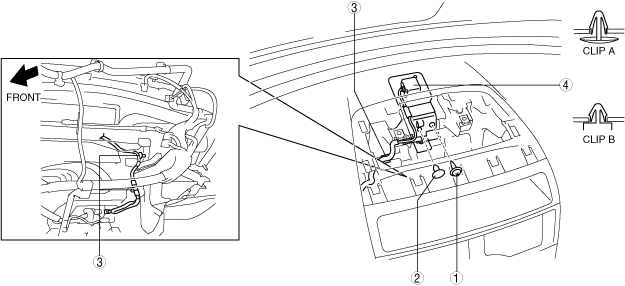

R.H.D.
|
1
|
Screw
|
|
2
|
Clip A
|
|
3
|
Clip B
|
|
4
|
GPS antenna
|
