FUEL SYSTEM LOCATION INDEX[L3]

id0114a2800100

Engine compartment side

atraaw00000824

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION[L3].) (See FUEL INJECTOR INSPECTION[L3].)
2	Fuel pump relay
3	Fuel pump stop switch (See FUEL PUMP STOP SWITCH REMOVAL/INSTALLATION[L3].) (See FUEL PUMP STOP SWITCH INSPECTION[L3].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[L3].)

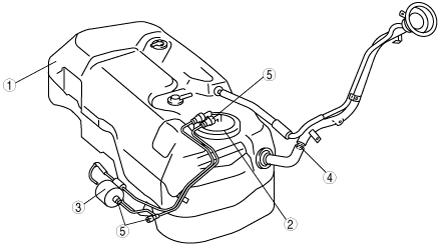

Fuel tank side

atraaw00000825

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION[L3].) (See FUEL TANK INSPECTION[L3].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION[L3].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY[L3].) (See FUEL PUMP UNIT INSPECTION[L3].)
3	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION[L3].)
4	Nonreturn valve (See NONRETURN VALVE INSPECTION[L3].)
5	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[L3].)
