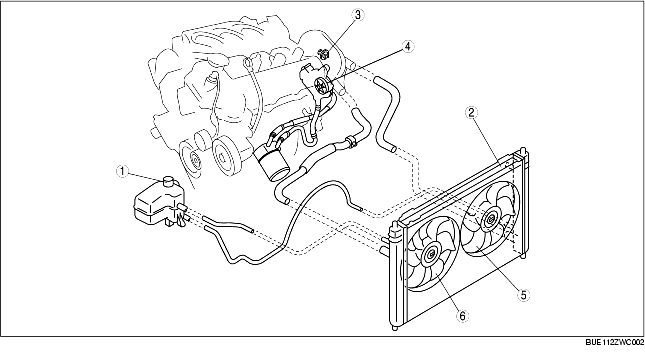

COOLING SYSTEM LOCATION INDEX [AJ (3.0L Duratec)]


1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION.)
2	Radiator (See RADIATOR REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
3	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [AJ (3.0L Duratec)].) (See THERMOSTAT INSPECTION [YF (2.0L Zetec), AJ (3.0L Duratec)].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
5	Main fan (See COOLING FAN MOTOR INSPECTION [AJ (3.0L Duratec)].)
6	Additional fan (See COOLING FAN MOTOR INSPECTION [AJ (3.0L Duratec)].)
