FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000405900

For All Vehicles

1. Remove the front combinationlight. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

2. Remove the front fender splash shield. (See FRONT FENDER SPLASH SHIELD REMOVAL/INSTALLATION.)

3. Remove the front side turn lights.

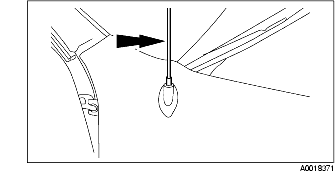

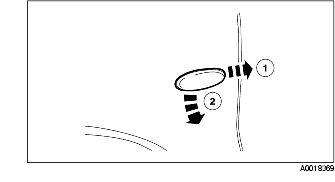

(1) Push the front side turn lights rearward.

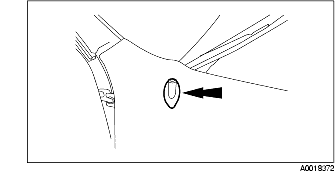

(2) Pull the front part of the front side turn lights outward and remove.

(3) Disconnect the connector.

4WD Vehicles

1. Remove the front fender molding. (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

2. Remove the side step molding. (See SIDE STEP MOLDING REMOVAL/INSTALLATION.)

Right Side

Power antenna

1. Remove the power antenna. (See POWER ANTENNA REMOVAL/INSTALLATION.)

Manual antenna

1. Remove the antenna mast.

2. Remove the antenna insulator.

All The Vehicles

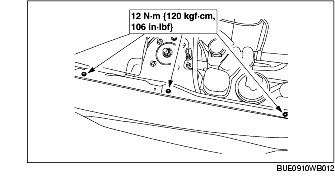

1. Remove the front fender panel lower bolts.

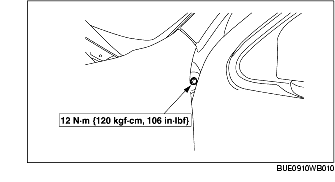

2. Remove the front fender panel bolt.

Note

• The front door must be open to remove the front fender panel bolt.

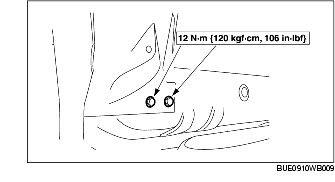

3. Remove the front fender panel radiator member bolt.

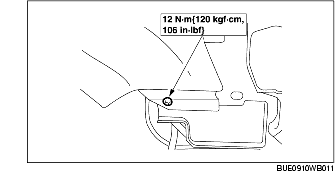

4. Remove the bolt and the front fender panel.

Note

• The right side of the antenna base is installed into the body inside of the fender. When removing, raise the front fender panel (RH) up to the antenna base.

5. Install in the reverse order of removal.
