Accelerator Mechanism, Servicing

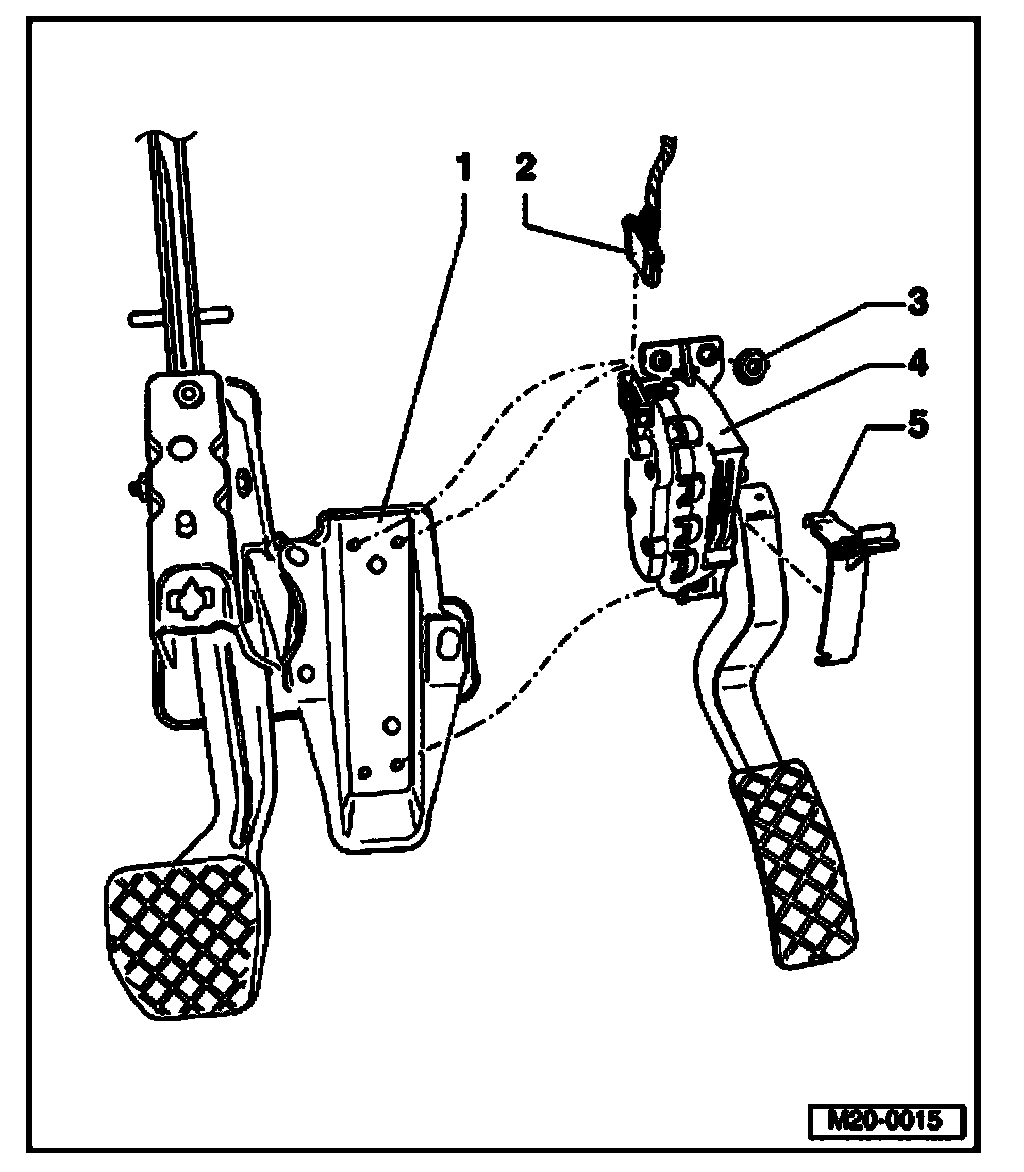

Accelerator Mechanism, Servicing 1.
Mounting bracket
2.
Connector
-
Black, 6-pin
3.
10 Nm 4.
Throttle Position (TP) sensor -G79-
-
Cannot be adjusted
-
TP sensor passes position of pedal on to engine control module
-
Remove footwell cover to remove sensor
5.
Bracket
-
For footwell cover
-
Clipped firmly onto
throttle position sensor.
