Piston, Engine



Piston installation position and piston/cylinder allocation





Piston in cylinders 1 and 2:
Larger intake valve chamber toward flywheel end - arrows -.
Piston in cylinders 3 and 4:
Larger intake valve chamber toward belt pulley end - arrows-.

Note:
^ New piston allocation to cylinders is shown by a colored marking on piston crown.
^ Piston for cylinders 1 and 2: marked 1/2.
^ Piston for cylinders 3 and 4: marked 3/4.

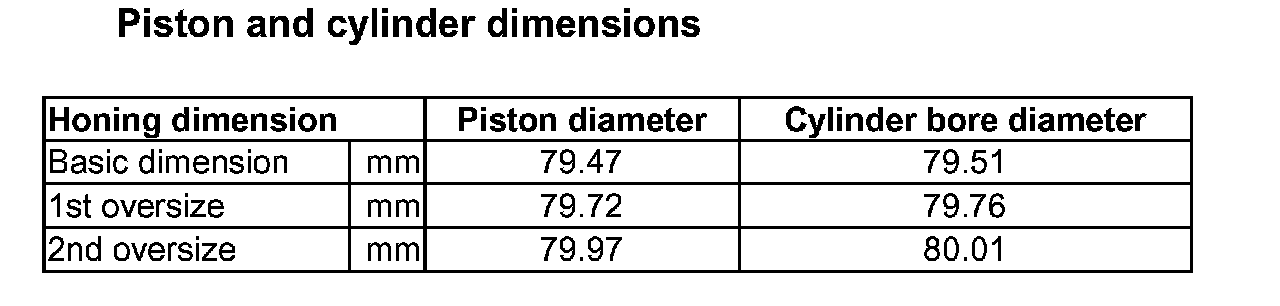

Piston and cylinder dimensions

Piston and cylinder dimensions:
