Multimedia Control Module, Overview

Multimedia Control Module, Overview

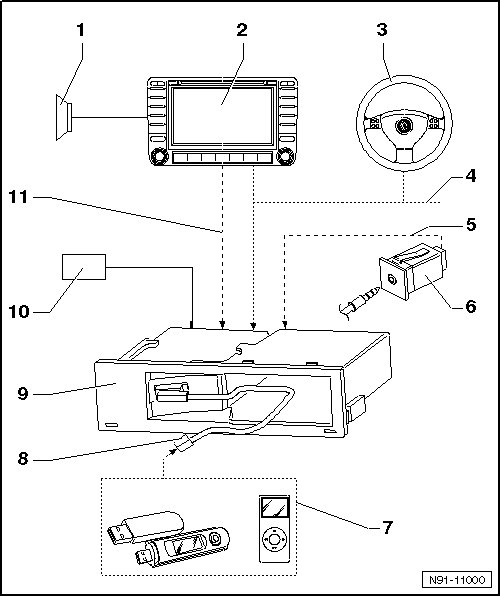

1 Radio and Radio/Navigation System Speaker System

2 Radio or Radio/Navigation System

3 Multifunction Steering Wheel

4 CAN Bus

5 LF Line

• The audio signal from the unit connected to the AUX IN socket runs through this wire and into the multi media control module.

6 AUX IN socket

• Additional information, refer to => [ External Audio Source Connection ] External Audio Source Connection.

7 Input Unites for Connecting The Multimedia Control Module

• mp3 Player

• Memory sticks

• iPod player

• Connection to the multimedia control module via the USB port

8 Wire Connection to Multimedia Control Unit

• In the form of specific adapter cables depending on the unit to be connected

9 Multimedia Control Module (J650)

• Removing and Installing, refer to => [ Multimedia Control Module ] Communication

10 Voltage Supply Connection for Multimedia Control Module

11 LF Line

• The audio signal of the unit connected to the AUX IN socket runs from the multi media control module into the AUX input of the radio or radio/navigation system.
