Front Fender Assembly Overview

Front Fender Assembly Overview

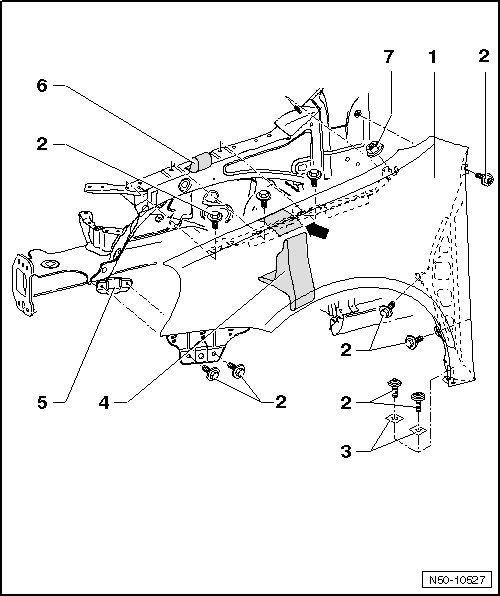

• The illustration shows the left side. It can also be applied to the right side.





1 Fender

• Removing and Installing => [ Fender ] Fender

2 Bolt

• Qty. 1, A-pillar

• Qty. 2, side member

• Qty.. 2, wheel housing

• Qty.. 2, fender brace

• Qty.. 3, fender connecting piece

• 6 Nm

3 Zinc spacer

• AKL 381 035 50

4 Foam piece

• Loosely inserted between fender and upper longitudinal member

5 Fender brace

• Removing and Installing => [ Fender Brace ] Fender Brace

6 Molded foam part

• Placed on upper longitudinal member.

• Secures at fender.

7 Hex nut

• Qty. 1, at fender connecting piece

• 6 Nm
