Firewall: Service and Repair

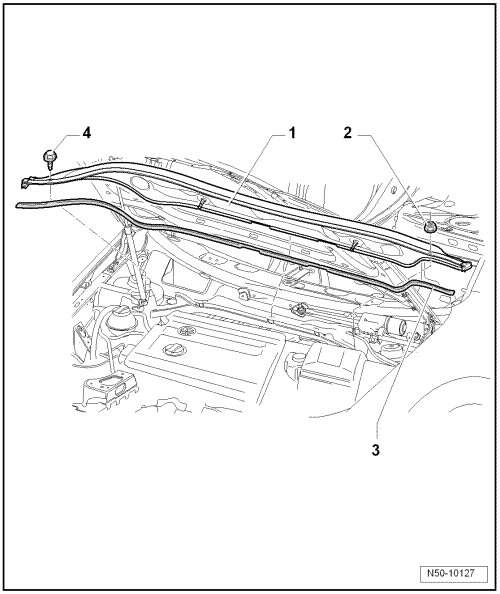

Plenum Chamber Bulkhead Assembly Overview Special tools, testers and auxiliary items required •
Torque wrench 2 to 10 Nm (V.A.G 1783)
1 Plenum chamber bulkhead 2 Hex nut •
8 Nm
3 Seal for plenum chamber bulkhead •
Ensure seal is seated correctly when installing bulkhead.
4 Bolt •
8 Nm
