Keyless Entry Transmitter: Service and Repair

Battery for Folding Remote Control Key

Removing

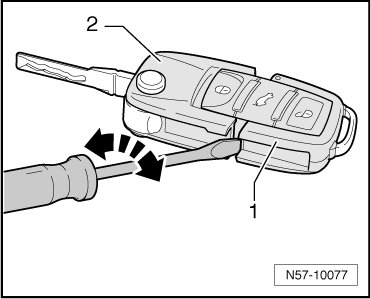

- Insert screwdriver in the slot between radio-frequency unit - 1 - and key - 2 -.





- Rotate screwdriver in - direction of arrow - and detach radio frequency unit from key.

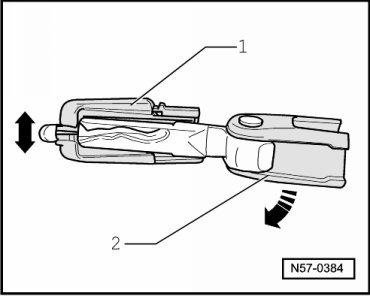

- Press radio frequency unit - 1 - apart with key bit on key - 2 -.

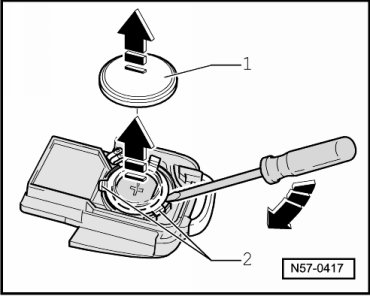

- Use a screwdriver to unclip battery - 1 - out of holders - 2 - in - direction of arrow -.





Installing

Keep the correct polarity and position when installing the batteries.

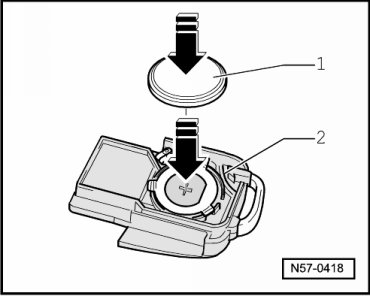

- Place battery - 1 - in radio-frequency unit - 2 - with positive terminal downward (positive terminal is marked in housing).

- Press on battery with light pressure to engage it in radio-frequency unit.

- Attach the cover and the radio frequency unit together (do not damage seal).

- Then lock radio-frequency unit with key.
