Procedures

Lower engine compartment cover (noise insulation), removing and
installing

Special tools, testers and auxiliary items required

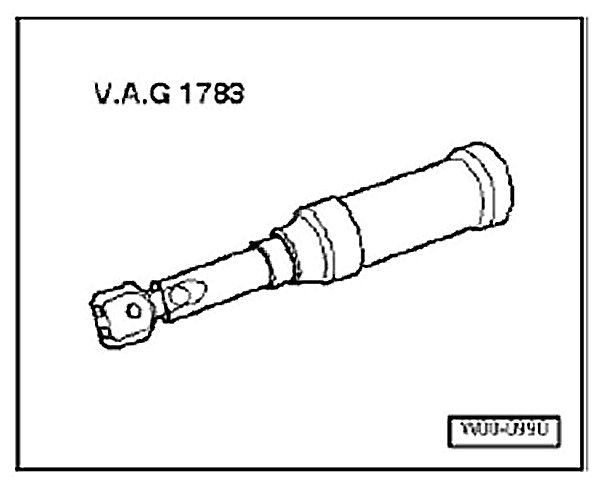

Torque wrench V.A.G 1783

Removing



- Remove bolts - arrows - .
- Remove noise insulation rearward.

Installing

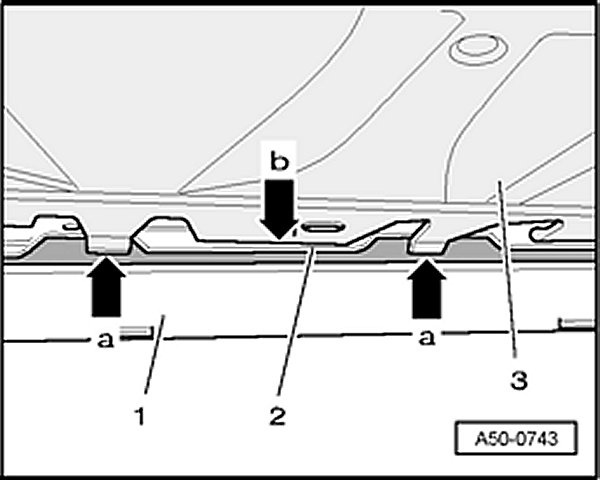

- Slide noise insulation - 3 - as shown into lower lock carrier - 2 - .

- The narrow latches - arrow a - must be slid below or wide latches - arrow b - slid above the lock carrier edge - 2 - .

- Retaining tabs must engage over wide tabs in lock carrier holes when doing so.

- Tighten screws - arrows - to correct torque specification.
