Engine Assembly Overview, Front/Side

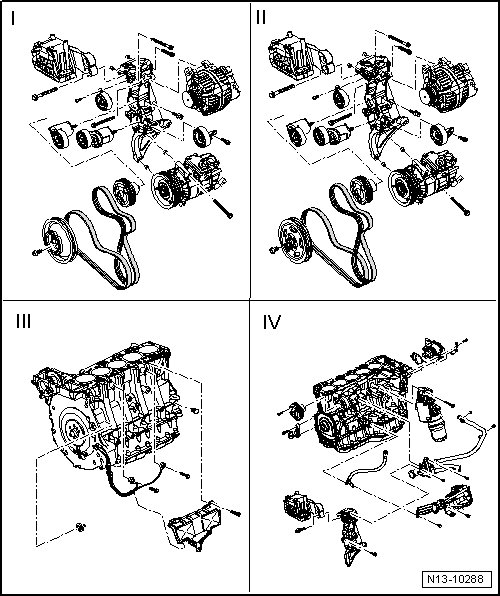

Engine Component Overview

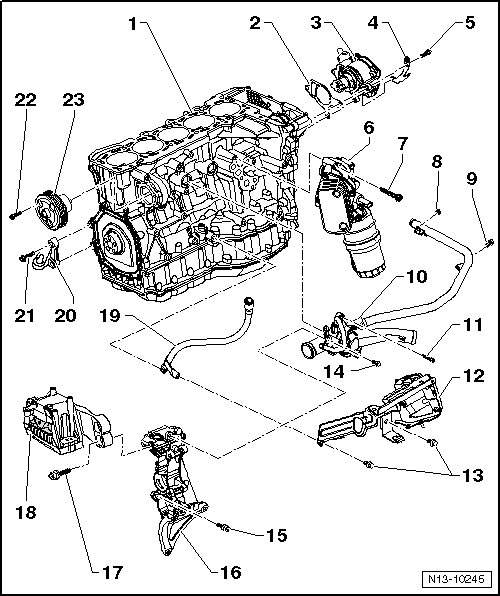

Engine Assembly Overview, Front/Side





1 Cylinder Block

2 Gasket

• Replace

3 Brake Booster Vacuum Pump

• Do not open

• Removing and installing, refer to => [ Brake Booster Vacuum Pump ] Brake Booster Vacuum Pump.

4 Bracket

5 Bolt

• 10 Nm

6 Oil Filter Bracket

• Assembly overview, refer to => [ Oil Filter Bracket and Attachments Assembly Overview ] Oil Filter Bracket and Attachments Assembly Overview.

7 Bolt

• 25 Nm

8 Nut

• 10 Nm

9 Bolt

• 10 Nm

10 Thermostat Housing

• With thermostat and coolant pipe.

11 Bolt

• 10 Nm

12 Intake Manifold Support

• Only for engines with the Secondary Air Injection (AIR) system.

13 Bolt

• 25 Nm

14 Bolt

• 10 Nm

15 Bolt

• 25 Nm

16 Accessory Bracket

17 Bolt

• 40 Nm + 90° (1/4) additional turn.

18 Engine Mount

19 Guide Tube

• For the oil dipstick.

20 Bracket

21 Bolt

• 25 Nm

22 Bolt

• 10 Nm

23 Coolant Pump

• Removing and installing, refer to => [ Coolant Pump ] Service and Repair.
