Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor

Removing

- Remove center air vent from front bumper cover catches Removal and Installation.

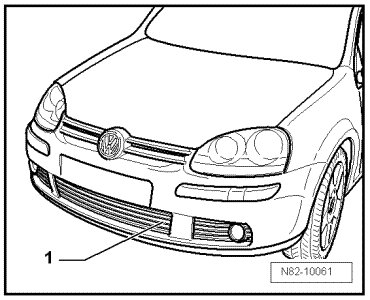

- Unclip Outside Air Temperature Sensor (G17) - 1 - from bracket and disconnect electrical connector.

Installing

Installation is carried out in the reverse order, when doing this note the following:

• Ensure electrical connector is seated correctly (water entry).
