Evaporator Temperature Sensor / Switch: Service and Repair

Climatronic Temperature Sensors

=> [ Left Footwell Vent ]

=> [ Right Footwell Vent ]

=> [ Evaporator Vent ]

=> [ Left and Right Vent ]

Left Footwell Vent

Removing

- Remove the instrument panel.

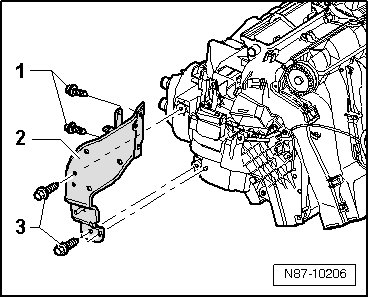

- Remove the bolts - 1 - and - 3 -(9 ± 1.3 Nm).

- Remove bracket - 2 -.

- Disconnect connector at Left Footwell Vent Temperature Sensor (G261) - 1 -.





- Rotate Left Footwell Vent Temperature Sensor ( G261) - 1 - 90° and remove from housing.

Installing

Install in reverse order of removal.

Right Footwell Vent

Removing

• For the sake of illustration, Right Footwell Vent Temperature Sensor (G262) is depicted with instrument panel removed. Instrument panel must not be removed for installation.

- Remove glove compartment.





- Disconnect connector at Right Footwell Vent Temperature Sensor (G262) - 1 -.

- Rotate Right Footwell Vent Temperature Sensor ( G262) - 1 - 90° and remove it from housing.

Installing

Install in reverse order of removal.

Evaporator Vent

Removing

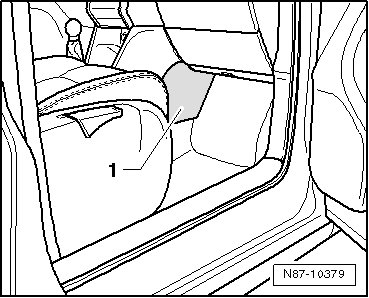

- Remove the right footwell trim - 1 -.





- Remove connector on Evaporator Temperature Sensor (G308) or Evaporator Vent Temperature Sensor (G263) - 1 -.





- Rotate Evaporator Temperature Sensor (G308) or Evaporator Vent Temperature Sensor (G263) in - direction of arrow - and remove.

Installing

Install in reverse order of removal.

Left and Right Vent

• Removal of sensors on both sides is identical, only the sides are reversed.

- Remove cover at left or right on instrument panel





- Disconnect connector - 1 - from vent temperature sensor - 2 -.

- Rotate vent temperature sensor - 2 -, rotate 90° - in direction of arrow - and remove from instrument panel.
