High Pressure Sensor / Switch: Service and Repair

High Pressure Sensor

Removing

- Remove noise insulation from engine

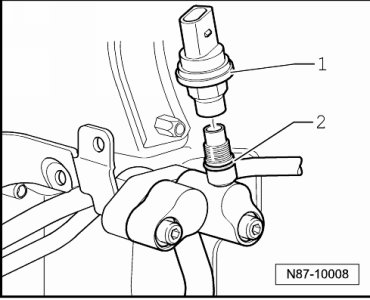

- Disconnect harness connector from high pressure sensor - 1 -.





- Unscrew High Pressure Sensor (G65) - 1 - from connection of refrigerant line.

• Replace O-ring - 2 -

• High Pressure Sensor (G65) - 1 - may also be installed on a different side in the vicinity of the condenser, depending on the engine version.

Installing

Install in reverse order of removal.
