Rear Axle Camber, Adjusting
Rear Axle Camber, Adjusting
Special tools, testers and auxiliary items required
• Shock Absorber Set (T10001)
• Insert Tool 18 mm (T10179)

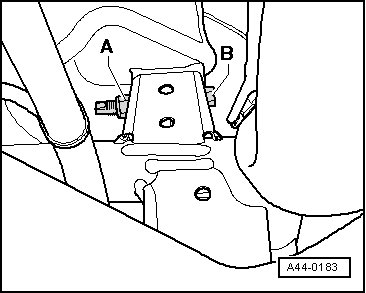

- Loosen nut - A - of threaded connection of upper transverse link at subframe.

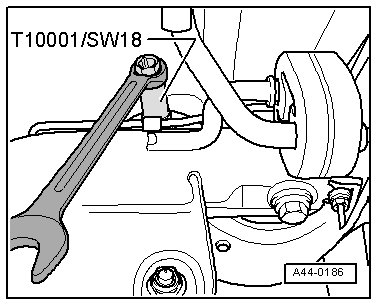

- Set camber by turning eccentric bolt - B - using (T10001).
• The maximum adjustment range is 90° to left or right of center position.
- Tighten nut - A -.

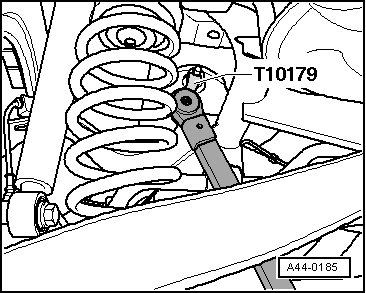

- To do so, use (T10179).
- After tightening the nut - A -, check the camber value again.

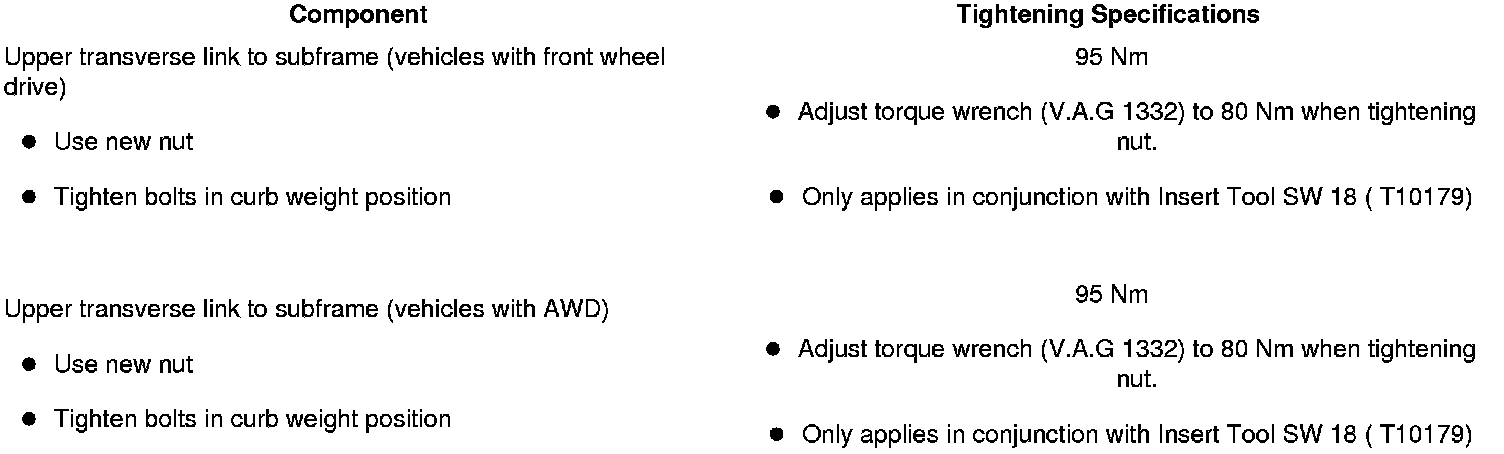

Tightening Specifications
