Removal and Replacement

Data Bus On Board Diagnostic Interface

Removing

• Before removing Data Bus On Board Diagnostic Interface (J533), the work procedure to read out the codes stored in the module must always be performed. Refer to=> [ Vehicle Electrical System Control Module, Coding ] Testing and Inspection.

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove cover in driver's side footwell

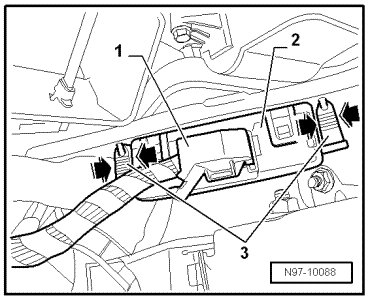

- Disengage harness connector - 1 - and disconnect it from Data Bus On Board Diagnostic Interface (J533) - 2 -.





- Press mounting pins - 3 - together - arrows - and out of holes.

Installing

Install in reverse order of removal.
