Engine Control Module: Application and ID



Technical Data

Engine data 2.5L 5Cyl 4V
Idle speed cannot be adjusted, 680 RPM
it is regulated by idle stabilization
Engine speed limitation by fuel 5800 RPM
injector shut-off
Fuel pressure: Fuel supply-pressure up to Approx. 4.0 bar positive pressure
high-pressure pump, (is produced by an (same under all operating conditions)
electric fuel pump in the fuel tank)
Fuel high pressure (produced by a Approx. 49 bar positive pressure at idle.
mechanical single-piston pump) at approx. Approx. 120 bar positive pressure at
85 degrees coolant temperature certain operating points.

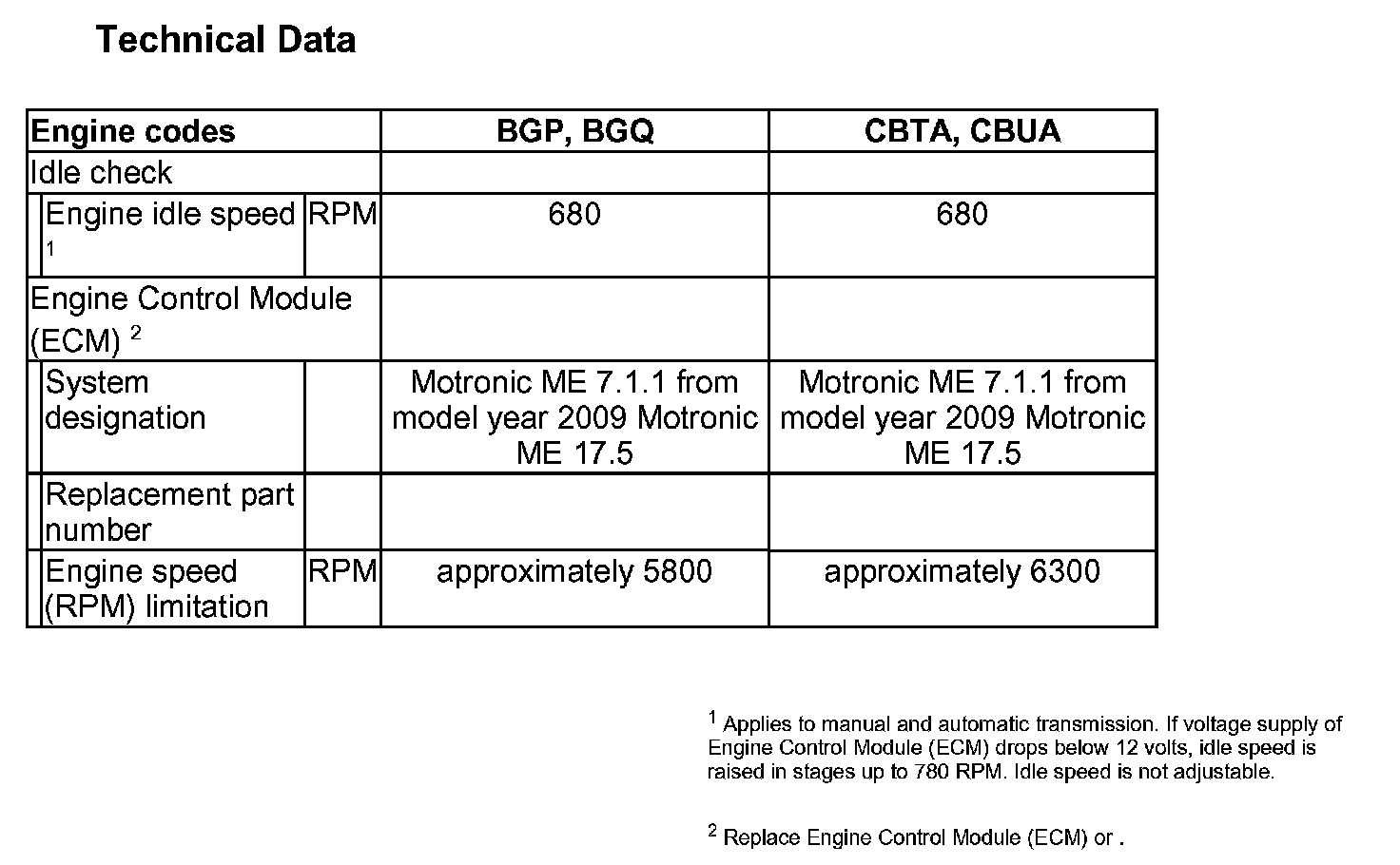

Technical Data
