Parking Assist Control Module: Service and Repair






Parking Aid Control Module

Control Module for parking aid is located behind side wall trim in luggage compartment, right side.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove right side panel trim.

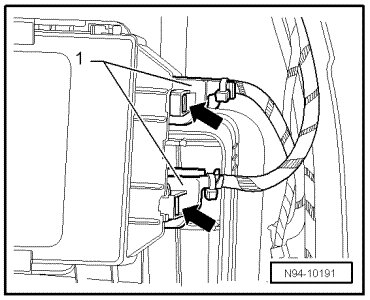

- Disconnect harness connectors - 1 - by pressing lugs - arrows - inward.

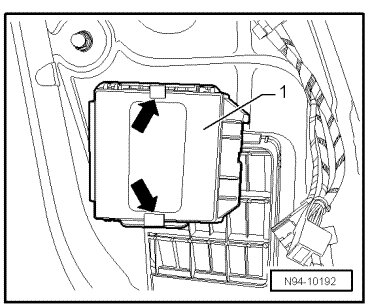

- Press lugs - arrows - of bracket outward and remove parking aid control module - 1 - out of bracket.





Installing

Install in reverse order of removal.
