Cylinder Head - Specification
Cylinder Head
Torque and Sequence

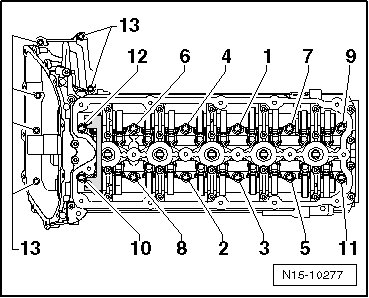

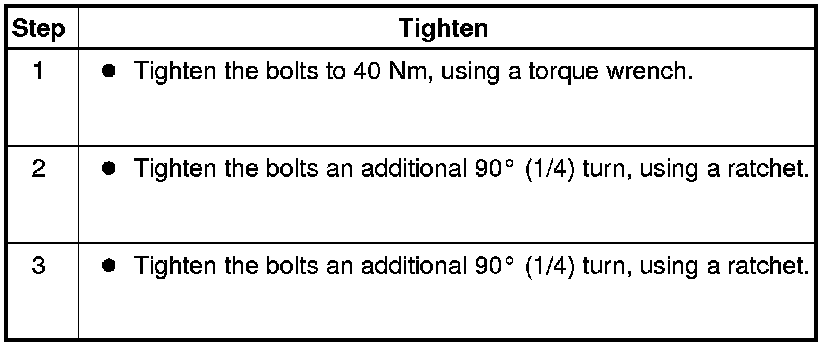

Tighten the cylinder head bolts - 1 through 12 - in the sequence shown as follows:
Then tighten bolts - 13 - to 10 Nm.
Checking Cylinder Head for Distortion
Check the cylinder head at multiple points for distortion, using a straight edge and feeler gauges.
Maximum permissible distortion: 0.05 mm
If this value is exceeded, the cylinder head must be replaced. It is not permissible to rework the sealing surface.
