Engine Data

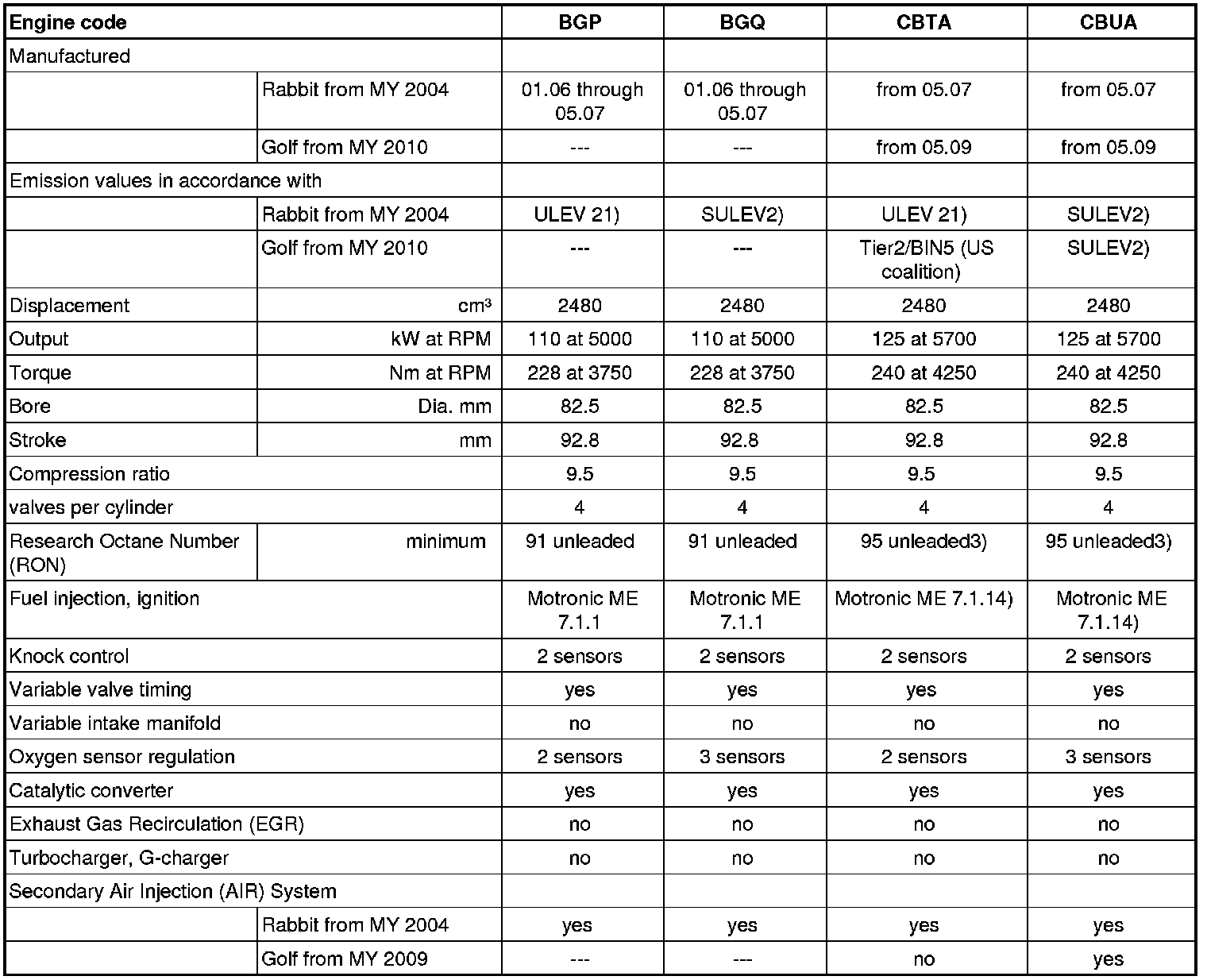

Engine Data





1) ULEV 2: Ultra Low Emission Vehicles 2

2) SULEV: Super Ultra Low Emission Vehicles

3) Also 91 RON but with reduced performance

4) from MY 2010 Motronic ME 17.5
