Starting and Charging: Locations

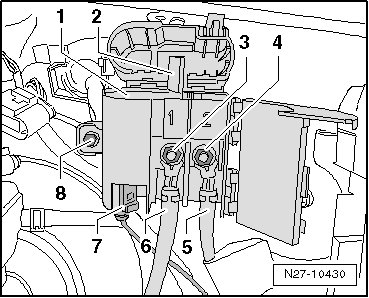

Component Location Overview





1 Interference suppression capacitor (C24)
2 External starting point
3 Mounting nut (collar nut) for terminal 30 wire to Starter (B) and to threaded connection (30) on E-box.
4 Mounting nut (collar nut) for terminal 30 wire from Battery Interrupt Igniter (N253) in luggage compartment, right side
5 Terminal 30 wire from Battery Interrupt Igniter (N253) in luggage compartment, right side
6 Terminal 30 wire to Starter (B) and to threaded connection (30) on E-box.
7 Harness connector for Suppressor (C24)
8 Bolt
