Power Steering Control Module -J500-

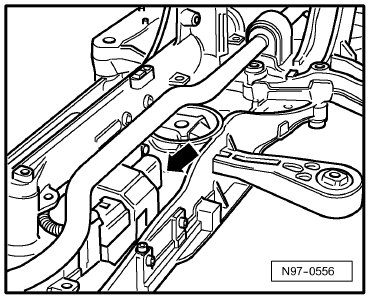

Control modules in front part of vehiclePower Steering Control Module -J500-Component Location: At steering on subframe, center -Arrow-

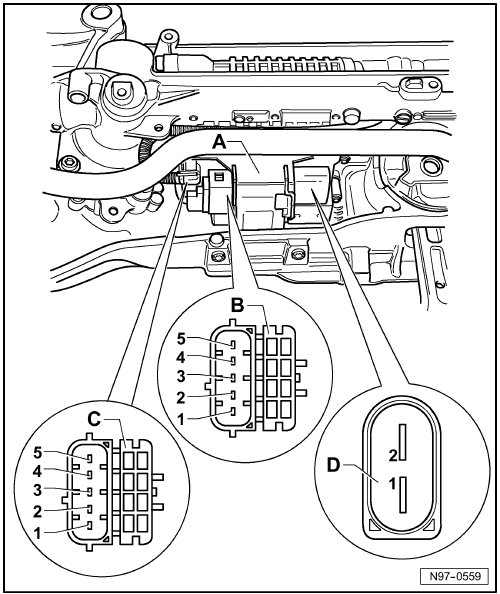

Pin Arrangements: A - Power Steering Control Module -J500- Connector: B - 5-Pin Connector -T5g-, on wiring harness C - 5-Pin Connector -T5h-, on wiring harness D - Double Connector -T2a-, on wiring harness
