Rear Window Assembly Overview

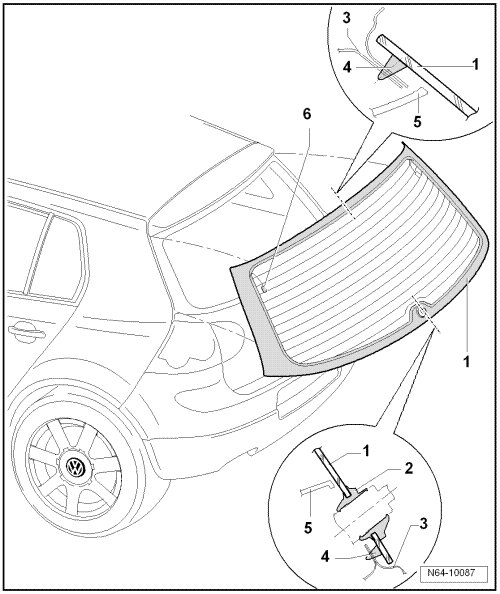

Rear Window Assembly Overview





1 Rear window

• Removing and Installing => [ Rear Window, Undamaged ] Rear Window, Undamaged

2 Seal

• For rear window wiper

3 Tailgate

4 PUR adhesive sealant

• Bead cross section: Width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange).

• Minimum Curing Time => [ Minimum Curing Time ] Minimum Curing Time

5 Trim

• Removing trim

6 Window antenna contact

• Right and left
