Window Track: Service and Repair






Front Door Window Guide

• Removing and installing is described only for the right window guide. Removing and installing the left window guide is similar

• For clarity, outer door plate is not depicted in the removal and installation.

Removing





- Remove side mirror => [ Exterior Rear View Mirror ] Exterior Rear View Mirror.

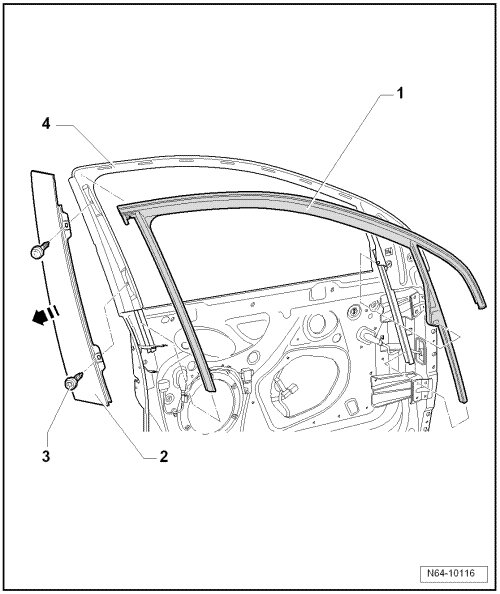

- Pull window guide - 1 - out of mount.

- Remove bolts - 3 - (two pieces) and pull off panel - 2 - in direction of B-pillar - direction of arrow -.

- Pull window guide - 1 - all around from window frame - 4 - and upward out of window shaft.

Installing

To install, perform the steps used for removal in reverse order.

• While installing window guide, make sure it is seated evenly (wind noise).
