Assembly Overview 1

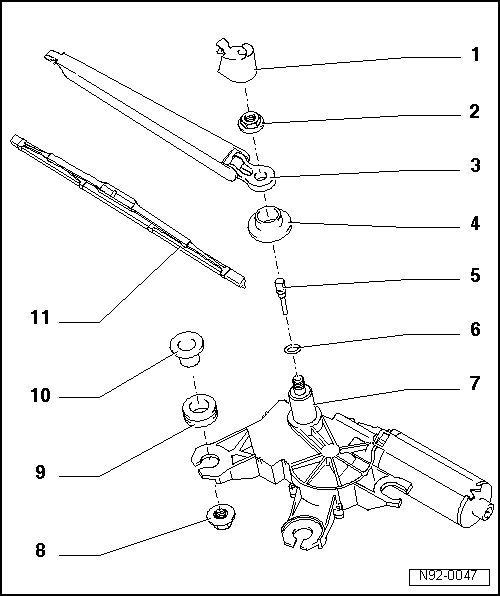

Rear Window Washer System Assembly Overview

1 - Cap

2 - Nut SW 13

• 12 Nm

3 - Wiper arm

• removing and installing, refer to=> [ Rear Window Wiper Blade ] Rear Window Wiper Blade

• Adjusting park position, refer to=> [ Windshield Wiper Blades, Adjusting Park Position ] Windshield Wiper Blades, Adjusting Park Position

4 - Gasket

5 - Spray nozzle

• Replacing, refer to=> [ Spray Nozzle ] Spray Nozzle

6 - Sealing ring

7 - Rear window wiper motor ( V12)

• Removing and installing, refer to=> [ Rear Window Wiper Motor ] Rear Window Wiper Motor

8 - M6 nut with washer

• 8 Nm

9 - Rubber ring

10 - Spacer

11 - Windshield wiper

• Removing and installing, refer to=> [ Windshield Wiper ] Windshield Wiper
