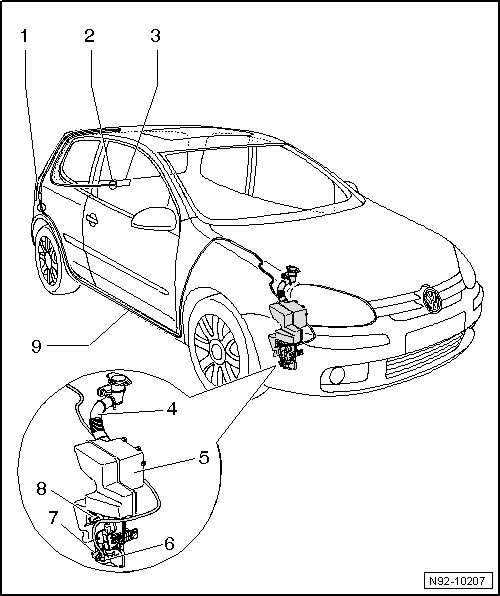

Rear Window Washer System Assembly Overview

• Additional information:

=> Owner's Manual

318Golf 2004

319Golf 2004 - Electrical System







1 Connecting piece

• Separating point between wiring harness of passenger compartment to wiring harness of rear lid

• Washer hose couplings

2 Connecting piece

• Connection to spray nozzle of rear window washer system

• Washer hose couplings

3 Spray nozzle for rear window washer system

• Replacing spray nozzle, refer to => [ Spray Nozzle ] Spray Nozzle

• Adjusting spray nozzle

4 Filler tube for tank for windshield washer system and headlamp cleaning system

• Removing and installing, refer to=> [ Windshield and Headlamp Washer Fluid Reservoir Filler Neck ] Windshield and Headlamp Washer Fluid Reservoir Filler Neck

5 Washer fluid reservoir

• removing and installing (vehicles without auxiliary heater), refer to=> [ Windshield and Headlamp Washer System Reservoir, without Auxiliary Heater ] Windshield and Headlamp Washer System Reservoir, without Auxiliary Heater

• removing and installing (vehicles with auxiliary heater), refer to=> [ Windshield and Headlamp Washer System Reservoir, with Auxiliary Heater ] Windshield and Headlamp Washer System Reservoir, with Auxiliary Heater

6 Angle coupling

• Connection to Windshield and Rear Window Washer Pump (V59)

• Washer hose couplings

7 Windshield and Rear Window Washer Pump (V59)

• Removing and installing, refer to => [ Windshield and Rear Window Washer Pump ] Service and Repair

8 Windshield Washer Fluid Level Sensor (G33)

• Removing and installing, refer to => [ Windshield Washer Fluid Level Sensor ] Service and Repair

9 Hose

• Hose repair
