ENGINE DISASSEMBLY/ASSEMBLY [WL-3]
id0110b5800500
1. Remove the injection nozzle. (See INJECTION NOZZLE REMOVAL/INSTALLATION [WL-3].)
2. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3].)
3. Remove the glow plug. (See GLOW PLUG REMOVAL/INSTALLATION [WL-3].)
4. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-3].)
5. Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)

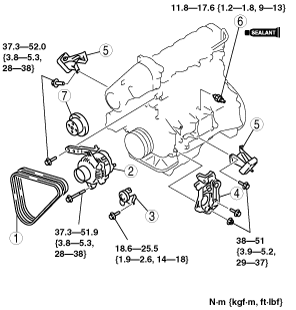

6. Disassemble in the order indicated in the table.
7. Assemble in the reverse order of disassembly.
absggw00001571
|
|
1
|
Drive belt
|
|
2
|
Generator
|
|
3
|
Idler
|
|
4
|
A/C compressor bracket
|
|
5
|
Engine mount bracket
|
|
6
|
Oil pressure switch
|
|
7
|
Water pump pulley
|
