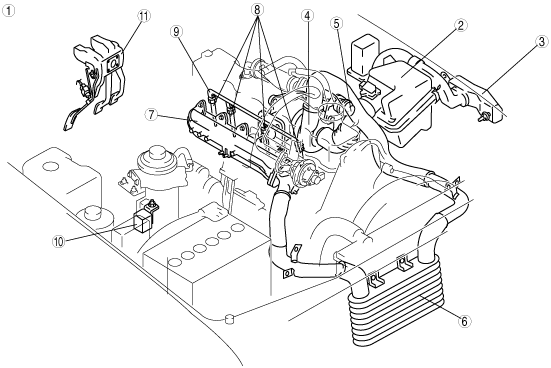

INTAKE-AIR SYSTEM LOCATION INDEX [WL-3]

id0113a9801700

dbg113awb301

1	Intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3].)
2	Air cleaner (See AIR CLEANER ELEMENT INSPECTION [WL-3].)
3	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3].)
4	Turbocharger (See TURBOCHARGER INSPECTION [WL-3].)
5	Wastegate damper
6	Charge air cooler (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3].)
7	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3].)
8	Glow plug (See GLOW PLUG REMOVAL/INSTALLATION [WL-3].) (See GLOW PLUG INSPECTION [WL-3].)
9	Glow plug cord (See GLOW PLUG CORD INSPECTION [WL-3].)
10	Glow plug relay (See GLOW PLUG RELAY REMOVAL/INSTALLATION [WL-3].) (See GLOW PLUG RELAY INSPECTION [WL-3].)
11	Accelerator pedal component (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-3].)
