FLOOR COVERING REMOVAL/INSTALLATION
id091700803000
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
- (7) Lower anchor of the front seat belt (without lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (8) Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (9) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)
- (10) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
- (11) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (12) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (13) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
- (14) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
- (15) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
- (16) SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
- (17) Parking lever (See PARKING BRAKE LEVER REMOVAL/INSTALLATION.)
- (18) Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
3. Remove fasteners.
4. Take the floor covering out from the opened door.
5. Install in the reverse order of removal. (See Floor Covering Installation Note.)
Floor Covering Installation Note
-
Caution
-

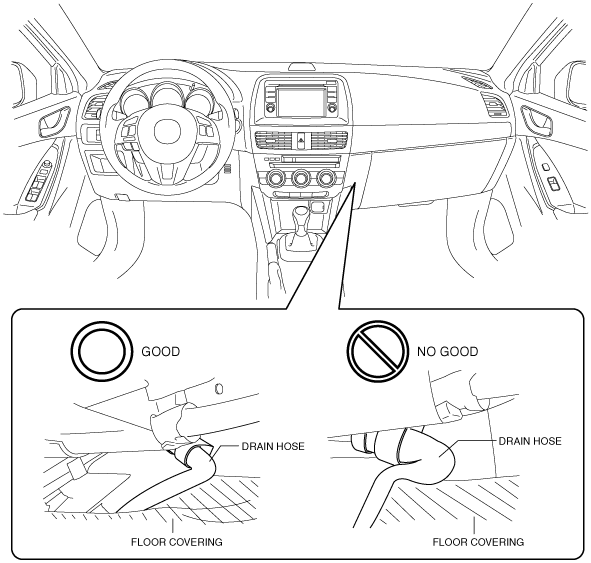

• When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.
1. Place the floor covering with it aligned to the body.
2. Before installing the side wall, verify that the A/C unit drain hose is not deformed.
