DTC P0172:00 [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))]


id0102sc934300

Note
•  To determine the malfunctioning part, proceed with the diagnostics from "Function Inspection Using M-MDS".
•  If the added fuel is 5 L {1 US gal, 1 Imp gal} or less, the PCM may not be able to determine the mixing proportion of the premium unleaded fuel and premium unleaded fuel (within E85) correctly and detects DTC P0172:00. (Premium unleaded fuel (within E85) compatible vehicles)

Details On DTCs

DESCRIPTION

Fuel trim system too rich

DETECTION CONDITION
Determination conditions
•  Any one of the following conditions is met:
―  The sum of the fuel feedback correction amount (SHRTFT1) and the fuel learning correction amount (LONGFT1) is the specified value (−25 %*1/−31 %*2) or less, and 10 s or more have elapsed with the fuel learning correction amount (LONGFT1) at the specified value (−15 %) or less.
―  While the engine is idling or the vehicle is driven, the fuel feedback correction amount reaches the lower limit (−25 % or less) for 20 s or more.
*1: Vehicles without coolant control valve or with coolant control valve (SKYACTIV-G 2.0)
*2: Vehicles with coolant control valve (SKYACTIV-G 2.5)
Preconditions
•  Engine coolant temperature: 0—45 °C {32—113 °F}, 60 °C {140 °F} or more*1
*1: Standard can be verified by displaying PIDs using M-MDS
Malfunction determination period
•  10 s or 20 s period
Drive cycle
•  2
Self test type
•  CMDTC self test
Sensor used
•  A/F sensor
FAIL-SAFE FUNCTION
•  Not applicable
VEHICLE STATUS WHEN DTCs ARE OUTPUT
•  Illuminates check engine light.
POSSIBLE CAUSE
•  Erratic signal to PCM
―  ECT sensor signal malfunction
―  MAF sensor signal malfunction
―  MAP sensor signal malfunction
―  IAT sensor No.2 signal malfunction
―  Related connector or terminals malfunction
―  Related wiring harness malfunction
•  High-pressure side fuel delivery system malfunction
―  Fuel pressure sensor malfunction
―  Relief valve (built-into high pressure fuel pump) malfunction
―  Spill valve control solenoid valve control circuit malfunction (damage to driver in PCM caused by short circuit to ground system)
―  Spill valve control solenoid valve (built-into high pressure fuel pump) malfunction
―  High pressure fuel pump malfunction
•  Low-pressure side fuel delivery system malfunction
―  Fuel filter clogged (built-into fuel pump unit)
―  Low pressure side fuel line restriction (between fuel pump unit and high pressure fuel pump)
―  Fuel pump unit malfunction
―  Pressure regulator (built-into fuel pump unit) malfunction
―  Fuel pump control module malfunction
•  Fuel injector malfunction
―  Improper operation of fuel injector
―  Fuel injector related wiring harness malfunction
•  Improper operation of purge control system
―  Purge solenoid valve malfunction
―  Purge solenoid hoses improper connection
•  MAF sensor malfunction
•  MAP sensor malfunction
•  Improper operation of electric variable valve timing control system
―  Electric variable valve timing driver malfunction
―  Electric variable valve timing motor malfunction
―  Electric variable valve timing actuator malfunction
•  Improper operation of hydraulic variable valve timing control system
•  A/F sensor malfunction
―  A/F sensor loose
•  PCM malfunction


System Wiring Diagram

•  Not applicable

Function Explanation (DTC Detection Outline)

•  The PCM detects the oxygen concentration in the exhaust gas from the A/F sensor signal and performs fuel injection amount feedback to maintain the optimum air/fuel ratio. If a condition in which the feedback correction amount is small (fuel injection amount being decreased) continues for the specified time, a feedback correction amount malfunction is determined, and a DTC is stored. The feedback correction amount has a “Fuel feedback correction amount” for the air/fuel ratio and a “Fuel learning correction amount” for fuel injector deterioration over time.
•  “Fuel feedback correction amount (SHRTFT1)” and “Fuel learning correction amount (LONGFT1)” can be verified from the M-MDS PID item.

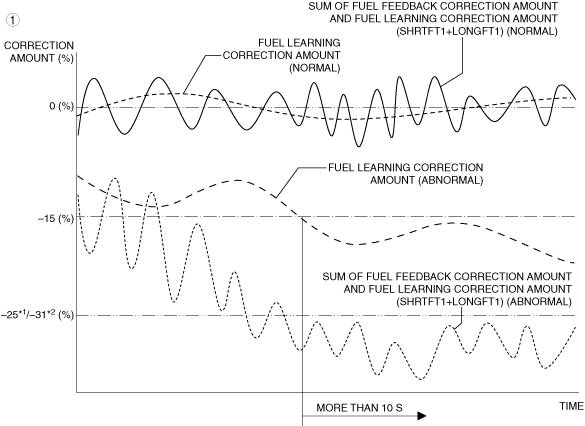

1.  The sum of the fuel feedback correction amount (SHRTFT1) and the fuel learning correction amount (LONGFT1) is the specified value (−25 %*1/−31 %*2) or less, and 10 s or more have elapsed with the fuel learning correction amount (LONGFT1) at the specified value (−15 %) or less.
Engine coolant temperature: 0—45 °C {32—113 °F}, 60 °C {140 °F} or more
ac5uuw00009621
2.  Fuel learning correction amount (LONGFT1) at the specified value (−25%) or less.
Engine coolant temperature: 0—45 °C {32—113 °F}, 60 °C {140 °F} or more
ac5uuw00006349
*1  :Vehicles without coolant control valve or with coolant control valve (SKYACTIV-G 2.0)
*2  :Vehicles with coolant control valve (SKYACTIV-G 2.5)

Repeatability Verification Procedure

1.  Warm up the engine to allow the engine coolant temperature to reach 80 °C {176 °F} or more.
2.  Start the engine and leave it idling for 1 min.
Note
•  Match the engine coolant temperature in the recorded FREEZE FRAME DATA/snapshot data, the vehicle speed, and engine speed values to the best extent possible while driving the vehicle.
3.  Try to reproduce the malfunction by driving the vehicle for 5 min based on the values in the FREEZE FRAME DATA/snapshot data.

Cause of Malfunction Verification Procedure (Premium Unleaded Fuel and Premium Unleaded Fuel (Within E85)

STEP

INSPECTION

RESULTS

ACTION

1
PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION
Note
•  Recording can be facilitated using the screen capture function of the PC.
•  Record the FREEZE FRAME DATA/snapshot data on the repair order.
Go to the next step.
2
PURPOSE: VERIFY FUEL AMOUNT WHEN DTC DETECTED
•  Verify the FLI of the freeze frame data.
•  Is the FLI value 30% or more?
Yes
Perform the DTC P0172:00 procedure.
No
Disconnect and connect the battery negative battery terminal.
Go to the next step.
3
PURPOSE: DETERMINE IF MALFUNCTION CAUSE IS THAT MIXING PROPORTION OF PREMIUN UNLEADED FUEL AND PREMIUM UNLEADED FUEL (WITHIN E85) CANNOT BE DETERMINED CORRECTLY
•  Implement the repeatability verification procedure.
•  Is the DTC P0172:00 displayed?
Yes
Perform the DTC P0172:00 procedure.
No
If DTC is detected:
•  Repair the malfunctioning location according to the applicable DTC troubleshooting.
If no DTC is detected:
•  DTC is output because the mixing proportion of premium unleaded fuel and premium unleaded fuel (within E85) cannot be determined correctly.
•  Explain the following refueling method to the customer.
―  It is recommended that premium unleaded fuel and premium unleaded fuel (within E85) should not be added alternately.
―  When changing the fuel type, refueling the tank to the extent possible (half of fuel tank capacity or more at minimum) with the different fuel is recommended.
―  Add more than 15 L {4.0 US gal, 3.3 Imp gal} of fuel when refueling.
―  Drive the vehicle for 10 km {6.2 mile} immediately after refueling so that the mixing proportion of premium unleaded fuel and premium unleaded fuel (within E85) is determined correctly.


PID Item/Simulation Item Used In Diagnosis

PID/DATA monitor item table

Item

Definition

Unit

Condition/Specification

APP
Accelerator pedal opening angle (relative value) with the fully released status as 0% and fully depressed status as 100%
%
•  Accelerator pedal released: Approx. 0%
•  Accelerator pedal fully depressed: Approx. 100%
ECT
Engine coolant temperature input from ECT sensor
°C, °F
•  Displays ECT
ECT sensor voltage
V
•  ECT is 20 °C {68 °F}: Approx. 3.10 V
•  ECT is 40 °C {104 °F}: Approx. 2.16 V
•  ECT is 60 °C {140 °F}: Approx. 1.40 V
•  ECT is 80 °C {176 °F}: Approx. 0.87 V
•  ECT is 100 °C {212 °F}: Approx. 0.54 V
EVAPCP
Purge solenoid valve control duty value
%
•  Idle (after warm up): 0% (Engine coolant temperature 59 °C {140 °F} or less)
•  Racing (Engine speed 2,000 rpm): 4.7%
•  Racing (Engine speed 4,000 rpm): 35.35%
FP
Fuel pump operation status
Off/On
•  Ignition switched ON (engine off): Off
•  Cranking: On
•  Idle (after warm up): On
FUEL_PRES
Fuel pressure input from fuel pressure sensor
KPa {MPa}, mBar {Bar}, psi, in H20
•  Displays fuel pressure
Fuel pressure (absolute) input from fuel pressure sensor
KPa {MPa}, mBar {Bar}, psi, in H20
•  Displays fuel pressure (absolute)
Fuel pressure sensor voltage
V
Without coolant control valve
•  Idle (ECT 80 °C {176 °F})
―  Fuel pressure is 3 MPa {31 kgf/cm2, 435 psi}: Approx. 0.9 V
With coolant control valve
•  Idle (ECT 80 °C {176 °F})
―  Fuel pressure is 10 MPa {102 kgf/cm2, 1450 psi}: Approx. 1.4 V
IAT2
Intake air temperature (No.2) input from IAT sensor No.2
°C, °F
•  Displays IAT (No.2)
IAT sensor No.2 voltage
V
•  IAT2 is 20 °C {68 °F}: Approx. 3.57 V
•  IAT2 is 40 °C {104 °F}: Approx. 2.70 V
•  IAT2 is 60 °C {140 °F}: Approx. 1.87 V
MAF
Mass air flow input from MAF sensor
g/Sec
•  Displays MAF
MAF sensor voltage
V
Without coolant control valve
•  Ignition switched ON (engine off) (MAF: 0.59 g/s {0.078 lb/min}): Approx. 0.72 V
•  Idle (after warm up) (MAF: 3.79 g/s {0.501 lb/min}): Approx. 0.93 V
•  Racing (engine speed is 2,000 rpm) (MAF: 6.96 g/s {0.921 lb/min}): Approx. 1.11 V
With coolant control valve
•  Ignition switched ON (engine off) (MAF: 0.00 g/s {0 lb/min}): Approx. 1.69 V (ECT is 53 °C {127 °F})
•  Idle (after warm up) (MAF: 2.50 g/s {0.331 lb/min}): Approx. 1.89 V (ECT is 93 °C {199 °F})
•  Racing (engine speed is 2,000 rpm) (MAF: 3.80 g/s {0.503 lb/min}): Approx. 2.02 V (ECT is 95 °C {203 °F})
MAP
Manifold absolute pressure input from MAP sensor
KPa {MPa}, mBar {Bar}, psi, in H20
•  Displays MAP
MAP_V
MAP sensor voltage
V
•  Ignition switched ON (engine off) (MAP:100 kPa {1.02 kgf/cm2, 14.5 psi}): Approx. 4.04 V
•  Idle (after warm up) (MAP: 35 kPa {0.36 kgf/cm2, 5.1 psi}): Approx. 1.40 V
•  Racing (engine speed is 2,000 rpm) (MAP: 26 kPa {0.27 kgf/cm2, 3.8 psi}): Approx. 1.01 V
O2S11
A/F sensor current
µA
•  Idle (after warm up): Approx. −39 µA
•  Deceleration fuel cut (accelerator pedal released from engine speed of 4,000 rpm or more): Approx. 3.84 mA
TP_REL
Throttle valve opening angle (relative value) with value at throttle valve fully close timing as the start point
%
•  Accelerator pedal released: Approx. 12%
•  Accelerator pedal fully depressed: Approx. 82%
VT_EX_ACT
Actual exhaust variable valve timing control
•  Retard amount from max advance position
° (deg)
•  Displays actual exhaust variable valve timing—retard amount from max advance position
VT_EX_DES
Target exhaust variable valve timing control
•  Retard amount from max advance position
° (deg)
•  Displays target exhaust variable valve timing—retard amount from max advance position
VT_IN_ACT
Actual intake variable valve timing control
•  Advance amount from max retard position
° (deg)
•  Displays actual intake variable valve timing—advance amount from max retard position
VT_IN_DES
Target intake variable valve timing control
•  Advance amount from max retard position
° (deg)
•  Displays target intake variable valve timing—advance amount from max retard position

Simulation item table

Item

Applicable component

Operation

Operation condition

Engine condition

Other condition

FP
Fuel pump
Select OFF/ON to forcibly drive/stop the fuel pump.
•  Under the following conditions:
―  Ignition is switched ON (engine off)
―  Idle (no load)
Not applicable
INJ_1
Fuel injector No.1
Select OFF to forcibly stop the fuel injector No.1.
Not applicable
Warning
•  Do not use the simulation function while the vehicle is being driven. Stopping the fuel ejection causes the engine to stall which may cause the brakes to not function.
INJ_2
Fuel injector No.2
Select OFF to forcibly stop the fuel injector No.2.
INJ_3
Fuel injector No.3
Select OFF to forcibly stop the fuel injector No.3.
INJ_4
Fuel injector No.4
Select OFF to forcibly stop the fuel injector No.4.


Function Inspection Using M-MDS

STEP

INSPECTION

RESULTS

ACTION

1
PURPOSE: VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
2
PURPOSE: IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA
•  Is the DTC P0172:00 on FREEZE FRAME DATA?
Yes
Go to the next step.
No
Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA.
3
PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION
Note
•  Recording can be facilitated using the screen capture function of the PC.
•  Record the FREEZE FRAME DATA/snapshot data on the repair order.
Go to the next step.
4
PURPOSE: VERIFY IF INPUT SIGNAL TO PCM AFFECTS FUEL INJECTION
•  Start the engine.
―  ECT
―  APP
―  TP_REL
•  Is there any signal that is far out of specification?
Yes
Inspect the suspected sensor and related wiring harness.
•  If there is any malfunction:
―  Repair or replace the malfunctioning part.
―  Go to the troubleshooting procedure to perform the procedure from Step 13.
•  If there is no malfunction:
―  Go to the next step.
No
Go to the next step.
5
PURPOSE: VERIFY CONNECTOR CONNECTIONS
•  Start the engine.
―  FUEL_PRES
―  FP
―  EVAPCP
―  MAF
―  MAP
―  MAP_V
―  IAT2
―  VT_EX_ACT
―  VT_IN_ACT
•  When the following parts are shaken, does the PID value include a PID item which has changed?
―  Fuel pressure sensor
―  Fuel pump control module
―  Purge solenoid valve
―  MAF sensor
―  MAP sensor/IAT sensor No.2
―  OCV
―  Electric variable valve timing motor/driver
―  PCM
Yes
Repair or replace the applicable connector parts.
Go to the troubleshooting procedure to perform the procedure from Step 13.
No
Go to the next step.
6
PURPOSE: VERIFY FUEL PRESSURE (HIGH-SIDE) MALFUNCTION
•  Switch the ignition off.
•  Reconnect all disconnected connectors.
•  Start the engine and idle it.
•  Is the FUEL_PRES PID value approx. 3 MPa {31 kgf/cm2, 435 psi}(without coolant control valve)/approx. 10 MPa {102 kgf/cm2, 1450 psi}(with coolant control valve)?
Yes
Go to the next step.
No
FUEL_PRES PID value is lower than 3 MPa {31 kgf/cm2, 435 psi}(without coolant control valve)/10 MPa {102 kgf/cm2, 1450 psi}(with coolant control valve):
•  Go to the troubleshooting procedure to perform the procedure from Step 1.
FUEL_PRES PID value is higher than 3 MPa {31 kgf/cm2, 435 psi}(without coolant control valve)/10 MPa {102 kgf/cm2, 1450 psi}(with coolant control valve):
•  Go to Step 8.
7
PURPOSE: VERIFY FUEL PRESSURE (LOW-SIDE) MALFUNCTION
Note
•  Verify the fuel pressure on the low pressure side with the operation of the high pressure fuel pump turned off.
•  Bleed the remaining pressure in the fuel line using the following procedure.
1.  Switch the ignition off.
2.  Disconnect the high pressure fuel pump connector.
3.  Disconnect the fuel pump relay.
4.  Start the engine and wait until the engine stalls.
•  Switch the ignition off.
•  Install the fuel pump relay.
•  Switch the ignition ON (engine off).
•  Display PID FUEL_PRES and simulation item FP using the M-MDS.
•  Turn simulation item FP on.
•  Is the FUEL_PRES PID value 405—485 kPa {4.13—4.94 kgf/cm2, 58.8—70.3 psi}?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 1.
8
PURPOSE: VERIFY IF MALFUNCTION CAUSED BY FUEL INJECTOR IMPROPER OPERATION
•  Switch the ignition off.
•  Reconnect all disconnected connectors.
•  Start the engine and idle it.
•  Access the following simulation items using the M-MDS:
―  INJ_1
―  INJ_2
―  INJ_3
―  INJ_4
•  Turn each fuel injector from on to off using the simulation items.
•  Does the vibration during idling worsen?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 3.
9
PURPOSE: VERIFY IF MALFUNCTION CAUSED BY PURGE SOLENOID VALVE IMPROPER OPERATION
•  Start the engine and idle it.
•  Is the EVAPCP PID value normal?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 4.
10
PURPOSE: VERIFY MAF SENSOR
•  Start the engine and idle it.
•  Is the MAF PID value normal?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 5.
11
PURPOSE: VERIFY MAP SENSOR
•  Start the engine and idle it.
―  MAP
―  MAP_V
•  Are all items normal?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 7.
12
PURPOSE: VERIFY INTAKE VALVE TIMING
•  Start the engine and idle it.
―  VT_IN_ACT
―  VT_IN_DES
•  Depress the accelerator pedal to increase the engine speed.
•  Does the monitor value of the PID item VT_IN_ACT conform to the VT_IN_DES PID value?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 8.
13
PURPOSE: VERIFY EXHAUST VALVE TIMING
•  Start the engine and idle it.
―  VT_EX_ACT
―  VT_EX_DES
•  Perform the following:
1.  Warm up the engine to allow the engine coolant temperature to reach 80 °C {176 °F} or more.
2.  Shift to 2nd gear (MTX)/D position (ATX) and rapidly accelerate the vehicle to 50 km/h {31 mph} (to operate hydraulic variable valve timing control).
3.  Decelerate to idling.
4.  Shift to 2nd gear (MTX)/D position (ATX) and rapidly accelerate the vehicle to 50 km/h {31 mph} again.
•  Does the monitor value of the PID item VT_EX_ACT conform to the VT_EX_DES PID value?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 11.
14
PURPOSE: VERIFY A/F SENSOR
•  Is the O2S11 PID value normal?
Yes
Go to the next step.
No
Go to the troubleshooting procedure to perform the procedure from Step 12.
15
PURPOSE: VERIFY DTC
•  Switch the ignition off, then ON (engine off).
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
Go to the troubleshooting procedure to perform the procedure from Step 1.
No
Go to the troubleshooting procedure to perform the procedure from Step 1.


Troubleshooting Diagnostic Procedure

Intention of troubleshooting procedure
•  Step 1—3
―  Perform a fuel injector control system inspection.
•  Step 4
―  Perform an emission system parts inspection.
•  Step 5—7
―  Perform an intake air system parts inspection.
•  Step 8—11
―  Perform a valve timing inspection.
•  Step 12
―  Perform an exhaust system parts inspection.
•  Step 13
―  Verify that the primary malfunction is resolved and there are no other malfunctions.

STEP

INSPECTION

RESULTS

ACTION

1
PURPOSE: DETERMINE INTEGRITY OF FUEL PUMP CONTROL MODULE
•  Is there any malfunction?
Yes
Replace the fuel pump control module, then go to Step 13.
No
Go to the next step.
2
PURPOSE: DETERMINE INTEGRITY OF FUEL PUMP UNIT
•  Is there any malfunction?
Yes
Replace the fuel pump unit, then go to Step 13.
No
Go to the next step.
3
PURPOSE: DETERMINE INTEGRITY OF FUEL INJECTOR
•  Is there any malfunction?
Yes
Replace the fuel injector, then go to Step 13.
No
Go to the next step.
4
PURPOSE: DETERMINE INTEGRITY OF PURGE SOLENOID VALVE
•  Is there any malfunction?
Yes
Replace the purge solenoid valve, then go to Step 13.
No
Go to the next step.
5
PURPOSE: DETERMINE INTEGRITY OF MAF SENSOR
•  Is there any malfunction?
Yes
Replace the MAF sensor/IAT sensor No.1, then go to Step 13.
No
Go to the next step.
6
PURPOSE: AIR CLEANER ELEMENT
•  Remove the air cleaner element with the engine is running.
•  Does the engine speed increase?
Yes
Inspect the air cleaner element.
•  If there is any malfunction:
―  Clean or replace the air cleaner element, then go to Step 13.
•  If there is no malfunction:
―  Go to the next step.
No
Go to the next step.
7
PURPOSE: DETERMINE INTEGRITY OF MAP SENSOR
•  Reconnect all disconnected connectors.
•  Is there any malfunction?
Yes
Replace the MAP sensor/IAT sensor No.2, then go to Step 13.
No
Go to the next step.
8
PURPOSE: DETERMINE INTEGRITY OF ELECTRIC VARIABLE VALVE TIMING DRIVER
•  Is there any malfunction?
Yes
Replace the electric variable valve timing motor/driver, then go to Step 13.
No
Go to the next step.
9
PURPOSE: DETERMINE INTEGRITY OF ELECTRIC VARIABLE VALVE TIMING MOTOR
•  Is there any malfunction?
Yes
Replace the electric variable valve timing motor/driver, then go to Step 13.
No
Go to the next step.
10
PURPOSE: DETERMINE INTEGRITY OF ELECTRIC VARIABLE VALVE TIMING ACTUATOR
•  Is there any malfunction?
Yes
Replace the electric variable valve timing actuator, then go to Step 13.
No
Go to the next step.
11
PURPOSE: DETERMINE INTEGRITY OF OCV
•  Is there any malfunction?
Yes
Replace the OCV, then go to Step 13.
No
Go to the next step.
12
PURPOSE: DETERMINE INTEGRITY OF A/F SENSOR
•  Is there any malfunction?
Yes
Replace the A/F sensor, then go to the next step.
No
Go to the next step.
13
PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION
•  Always reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Implement the repeatability verification procedure.
•  Perform the Pending Trouble Code Access Procedure.
•  Is the PENDING CODE for this DTC present?
Yes
Repeat the inspection from Step 1.
No
DTC troubleshooting completed.
