DTC U3003:16, U3003:17 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2731000

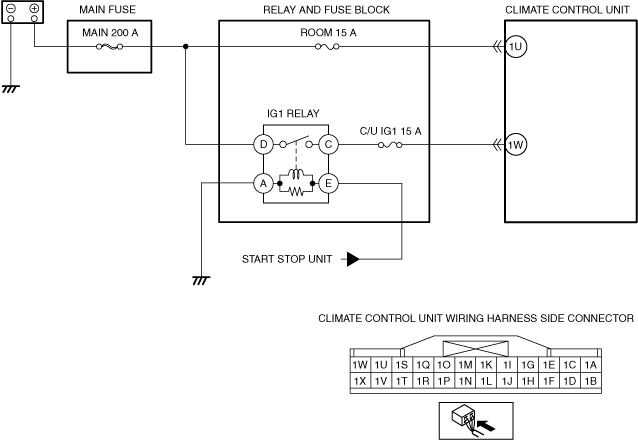

Without i-stop/Without i-ELOOP

System malfunction location	•  U3003:16: Climate control unit power supply circuit voltage below threshold (10 V or less) •  U3003:17: Climate control unit power supply circuit voltage above threshold (17.3 V or more)
Detection condition	•  Climate control unit power supply voltage is other than 10.1—17.2 V
Fail-safe function	Not applicable
Possible cause	•  Battery malfunction •  DTCs stored in PCM. •  Generator system malfunction •  Climate control unit connector or terminal malfunction •  Climate control unit power supply circuit malfunction: ―  Short to ground in wiring harness between climate control unit terminal 1U — ROOM 15 A fuse ―  Short to ground in wiring harness between climate control unit terminal 1W — C/U IG1 15 A fuse ―  ROOM 15 A fuse malfunction ―  C/U IG1 15 A fuse malfunction ―  IG1 relay malfunction ―  Open circuit in wiring harness between climate control unit terminal 1U — MAIN 200 A fuse ―  Open circuit in wiring harness between climate control unit terminal 1W — MAIN 200 A fuse •  Climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT IG1 RELAY FOR MALFUNCTION •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the IG1 relay. (See RELAY LOCATION.) •  Inspect the IG1 relay. (See RELAY INSPECTION.) •  Is the IG1 relay normal?	Yes	Go to the next step.
		No	Replace the IG1 relay, then go to Step 8. (See RELAY LOCATION.)
2	PERFORM PCM DTC INSPECTION •  Perform the PCM DTC inspection using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See ON-BOARD DIAGNOSTIC TEST [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See DTC TABLE [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].) (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
		No	Go to the next step.
3	INSPECT BATTERY •  Inspect the battery. (See BATTERY INSPECTION.) •  Is the battery normal?	Yes	Go to the next step.
		No	Replace or charge the battery. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY RECHARGING.) Then go to Step 8.
4	INSPECT GENERATOR •  Inspect the generator. (See GENERATOR INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See GENERATOR INSPECTION [WITHOUT i-ELOOP (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5T].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2].) •  Is the generator normal?	Yes	Go to the next step.
		No	Replace the generator. (See GENERATOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) Then go to Step 8.
5	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to Step 8.
6	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1W •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the C/U IG1 15 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and C/U IG1 15 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and MAIN 200 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to Step 8.
7	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1U •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the ROOM 15 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and ROOM 15 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and MAIN 200 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to the next step.
8	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Reconnect the disconnected connectors. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
9	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.

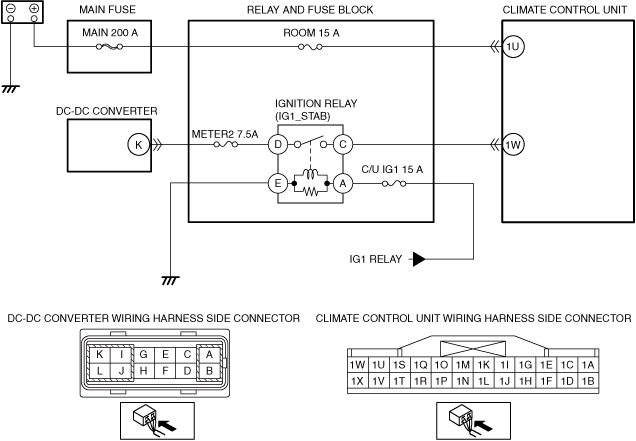

With i-stop/Without i-ELOOP

System malfunction location	•  U3003:16: Climate control unit power supply circuit voltage below threshold (10 V or less) •  U3003:17: Climate control unit power supply circuit voltage above threshold (17.3 V or more)
Detection condition	•  Climate control unit power supply voltage is other than 10.1—17.2 V
Fail-safe function	Not applicable
Possible cause	•  DTCs stored in PCM. ―  DC-DC converter connector or terminal malfunction ―  DC-DC converter malfunction •  Battery malfunction •  Generator system malfunction •  Climate control unit connector or terminal malfunction •  Climate control unit power supply circuit malfunction: ―  Short to ground in wiring harness between climate control unit terminal 1U — ROOM 15 A fuse ―  Short to ground in wiring harness between climate control unit terminal 1W — METER2 7.5 A fuse ―  ROOM 15 A fuse malfunction ―  METER2 7.5 A fuse malfunction ―  Ignition relay (IG1_STAB) malfunction ―  Open circuit in wiring harness between climate control unit terminal 1U — MAIN 200 A fuse ―  Open circuit in wiring harness between climate control unit terminal 1W — DC-DC converter terminal K •  Climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT IGNITION RELAY (IG1_STAB) FOR MALFUNCTION •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the ignition relay (IG1_STAB). (See RELAY LOCATION.) •  Inspect the ignition relay (IG1_STAB). (See RELAY INSPECTION.) •  Is the ignition relay (IG1_STAB) normal?	Yes	Go to the next step.
		No	Replace the ignition relay (IG1_STAB), then go to Step 8. (See RELAY LOCATION.)
2	PERFORM PCM DTC INSPECTION •  Perform the PCM DTC inspection using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See ON-BOARD DIAGNOSTIC TEST [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5T)].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See DTC TABLE [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See DTC TABLE [PCM (SKYACTIV-G 2.5T)].) (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
		No	Go to the next step.
3	INSPECT BATTERY •  Inspect the battery. (See BATTERY INSPECTION.) •  Is the battery normal?	Yes	Go to the next step.
		No	Replace or charge the battery. (See BATTERY REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY RECHARGING.) Then go to Step 8.
4	INSPECT GENERATOR •  Inspect the generator. (See GENERATOR INSPECTION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See GENERATOR INSPECTION [WITHOUT i-ELOOP (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5T].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2].) •  Is the generator normal?	Yes	Go to the next step.
		No	Replace the generator. (See GENERATOR REMOVAL/INSTALLATION [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See GENERATOR REMOVAL/INSTALLATION [WITHOUT i-ELOOP (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) Then go to Step 8.
5	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to Step 8.
6	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1W •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the METER2 7.5 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and METER2 7.5 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and DC-DC converter terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to Step 8.
7	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1U •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the ROOM 15 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and ROOM 15 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and MAIN 200 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to the next step.
8	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Reconnect the disconnected connectors. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
9	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.

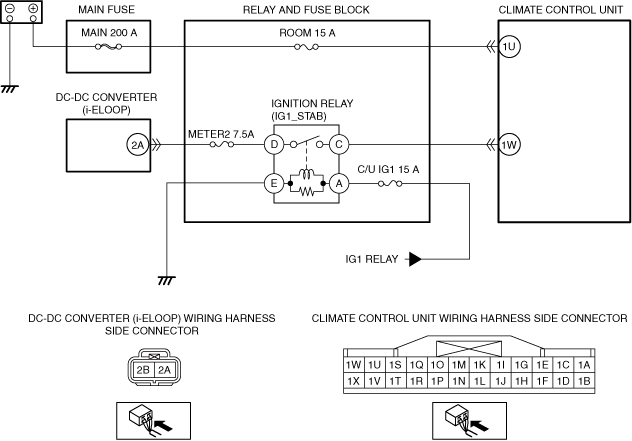

With i-stop/With i-ELOOP

System malfunction location	•  U3003:16: Climate control unit power supply circuit voltage below threshold (10 V or less) •  U3003:17: Climate control unit power supply circuit voltage above threshold (17.3 V or more)
Detection condition	•  Climate control unit power supply voltage is other than 10.1—17.2 V
Fail-safe function	Not applicable
Possible cause	•  DTCs stored in PCM. ―  DC-DC converter (i-ELOOP) connector or terminal malfunction ―  DC-DC converter (i-ELOOP) malfunction •  Battery malfunction •  Generator system malfunction •  Climate control unit connector or terminal malfunction •  Climate control unit power supply circuit malfunction: ―  Short to ground in wiring harness between climate control unit terminal 1U — ROOM 15 A fuse ―  Short to ground in wiring harness between climate control unit terminal 1W — METER2 7.5 A fuse ―  ROOM 15 A fuse malfunction ―  METER2 7.5 A fuse malfunction ―  Ignition relay (IG1_STAB) malfunction ―  Open circuit in wiring harness between climate control unit terminal 1U — MAIN 200 A fuse ―  Open circuit in wiring harness between climate control unit terminal 1W — DC-DC converter (i-ELOOP) terminal 2A •  Climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT IGNITION RELAY (IG1_STAB) FOR MALFUNCTION •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Remove the ignition relay (IG1_STAB). (See RELAY LOCATION.) •  Inspect the ignition relay (IG1_STAB). (See RELAY INSPECTION.) •  Is the ignition relay (IG1_STAB) normal?	Yes	Go to the next step.
		No	Replace the ignition relay (IG1_STAB), then go to Step 8. (See RELAY LOCATION.)
2	PERFORM PCM DTC INSPECTION •  Perform the PCM DTC inspection using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].)
		No	Go to the next step.
3	INSPECT BATTERY •  Inspect the battery. (See BATTERY INSPECTION.) •  Is the battery normal?	Yes	Go to the next step.
		No	Replace or charge the battery. (See BATTERY REMOVAL/INSTALLATION [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See BATTERY RECHARGING.) Then go to Step 8.
4	INSPECT GENERATOR •  Inspect the generator. (See GENERATOR INSPECTION [WITH i-ELOOP (SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION))].) •  Is the generator normal?	Yes	Go to the next step.
		No	Replace or charge the generator. (See GENERATOR REMOVAL/INSTALLATION [WITH i-ELOOP (SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION))].) Then go to Step 8.
5	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to Step 8.
6	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Switch the ignition ON (engine off or on). •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1W •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the METER2 7.5 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and METER2 7.5 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and DC-DC converter (i-ELOOP) terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to Step 8.
7	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY VOLTAGE •  Climate control unit connector is disconnected. •  Measure the voltage at the following terminals (wiring harness-side): ―  Climate control unit terminal 1U •  Is the voltage 10.1—17.2 V?	Yes	Go to the next step.
		No	Inspect the ROOM 15 A fuse. •  If the fuse is blown: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and ROOM 15 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. ―  Replace the fuse. •  If the fuse is damaged: ―  Replace the fuse. •  If the fuse is normal: ―  Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and MAIN 200 A fuse. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Then go to the next step.
8	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Switch the ignition off. •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Reconnect the disconnected connectors. •  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
9	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.
