HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0740a2803600

Structural View

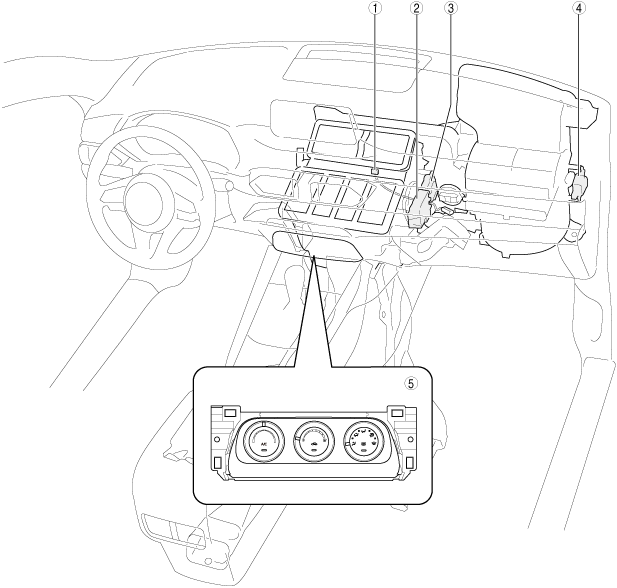

ac5wzw00008872

1	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
2	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
3	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
4	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER].)
5	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER].)

Structural View

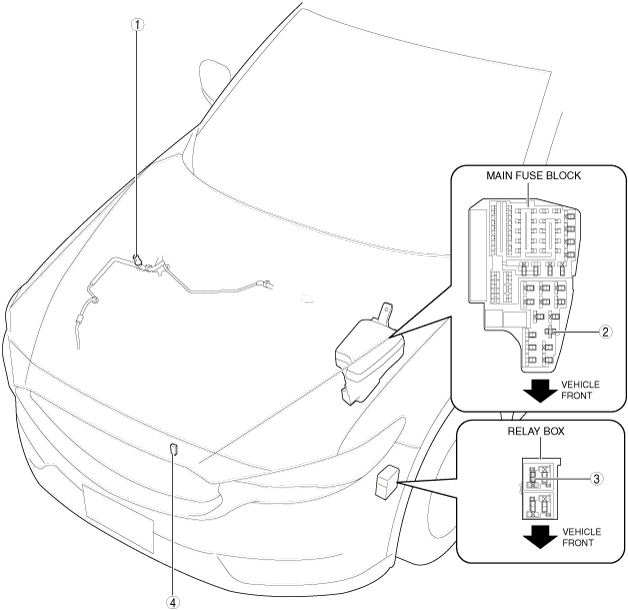

ac5wzw00008873

1	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
2	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER].)
