REAR SEAT BELT REMOVAL/INSTALLATION

id081100800800

Warning

• Handling the rear seat belt (rear pre-tensioner seat belt) improperly can accidentally deploy the pre-tensioner, which may seriously injure you. Read the air bag system service warnings and cautions before handling the rear seat belt (rear pre-tensioner seat belt).

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Caution

• If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

With Rear Pre-tensioner Seat Belt

1. Switch the ignition to off.

2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Tonneau cover (See TONNEAU COVER REMOVAL/INSTALLATION.)

(2) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3) Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(4) Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(5) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(9) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

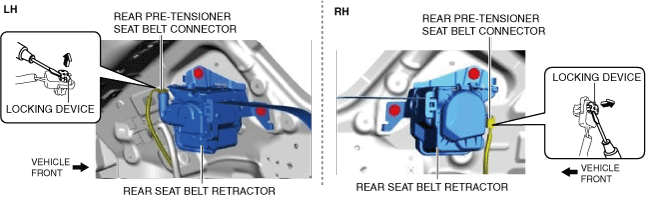

4. Using a flathead screwdriver, lift the front pre-tensioner seat belt connector locking device carefully, however do not remove it.

ac5wzw00008941

5. Disconnect the rear pre-tensioner seat belt connector.

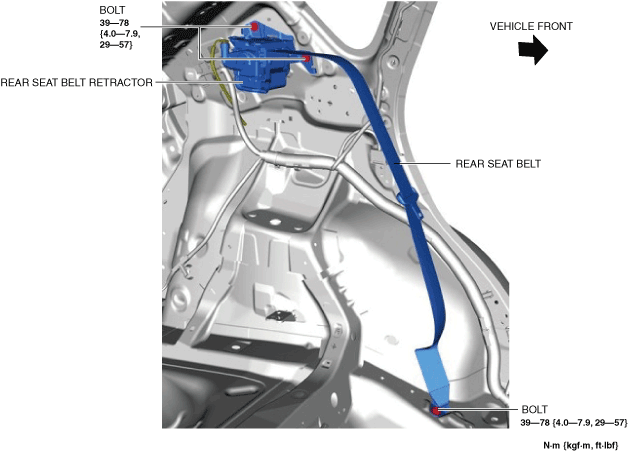

6. Remove the bolts.

ac5wzw00008942

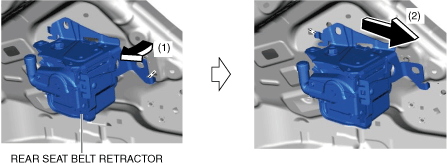

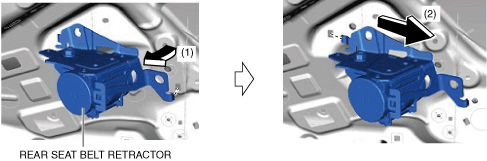

7. Move the rear seat belt retractor in the order of arrows (1) and (2) shown in the figure, and remove it from the body.

ac5wzw00008943

8. Remove the rear seat belt.

9. Install in the reverse order of removal.

10. Switch the ignition ON (engine off or on).

11. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

• If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

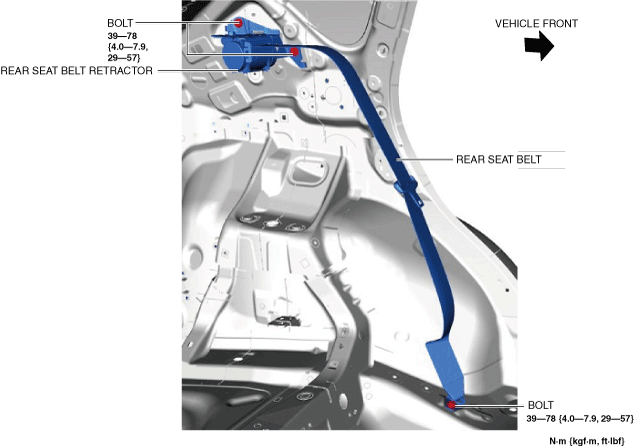

Without Rear Pre-tensioner Seat Belt
