FRONT DRAIN HOSE REMOVAL/INSTALLATION
id091500443800
Driver-side
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (8) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (9) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (11) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (12) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (13) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (14) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (15) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (16) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (17) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (18) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

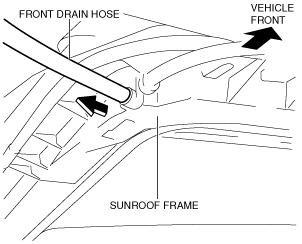

3. Disconnect the front drain hose from the sunroof frame.
4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.
5. Pull the front drain hose in the direction of the arrow in the order of (3), (4) and remove it while detaching hooks B.
6. Pull the front drain hose in the direction of the arrow in the order of (5), (6) and remove it while detaching hook C.
7. Set the dash lower insulator aside.
8. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow.
9. Pull the front drain hose out from the A-pillar side.
10. Install in the reverse order of removal.
Passenger-side
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
- (1) Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION.)
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (4) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (7) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (8) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (9) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (10) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (11) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (12) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
- (13) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
- (14) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (15) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (16) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (17) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (18) Glove compartment (with center display) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
- (19) Dashboard under cover (with center display) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
- (20) Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (21) Tuner and amp unit (TAU) (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)
- (22) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
3. Disconnect the front drain hose from the sunroof frame.
4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks A.
5. Pull the front drain hose in the direction of the arrow in the order of (3), (4) and remove it while detaching hooks B.
6. Pull the front drain hose in the direction of the arrow in the order of (5), (6) and remove it while detaching hooks A.
7. Set the dash lower insulator aside.
8. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow.
9. Pull the front drain hose out from the A-pillar side.
10. Install in the reverse order of removal.
