ENTERTAINMENT LOCATION INDEX

id092000800100

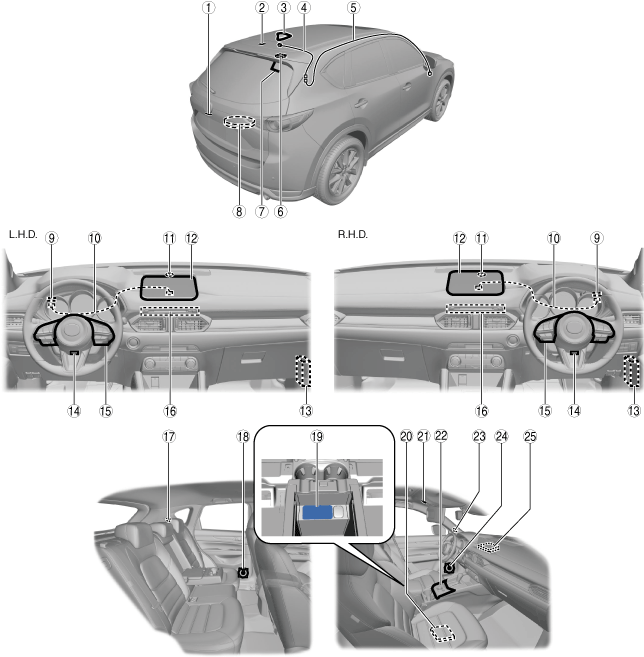

With Center Display

ac5wzw00015171

1	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.) (See REAR MOUNT CAMERA INSPECTION.) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)
2	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
3	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
4	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
5	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
6	DAB antenna amplifier (with DAB radio) (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.) (See DAB ANTENNA AMPLIFIER INSPECTION.)
7	Glass antenna (with DAB radio) (See GLASS ANTENNA INSPECTION.)
8	Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.) (See BASS-BOX INSPECTION.)
9	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)
10	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.) (See GPS ANTENNA FEEDER INSPECTION.)
11	Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.) (See FRONT CENTER SPEAKER INSPECTION.)
12	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
13	Tuner and amp unit (TAU) [Type-A] (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION [TYPE-A].) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION [TYPE-A].)
	Remote tuner (RT) [Type-B] (See REMOTE TUNER (RT) REMOVAL/INSTALLATION [TYPE-B].)
14	AudioPilot ® microphone (with Bose®) (See AudioPilot® MICROPHONE REMOVAL/INSTALLATION.)
15	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
16	CD player [Type-A] (See CD PLAYER REMOVAL/INSTALLATION [TYPE-A].)
	DVD/CD player [Type-A] (See DVD/CD PLAYER REMOVAL/INSTALLATION [TYPE-A].)
17	Rear speaker (with Bose®) (See REAR SPEAKER REMOVAL/INSTALLATION.) (See REAR SPEAKER INSPECTION.)
18	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
19	Auxiliary jack/USB port/SD card slot hub [Type-A] (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION [TYPE-A].)
	USB port/SD card slot hub [Type-B] (See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION [TYPE-B].)
20	Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
21	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
22	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
23	Tweeter (See TWEETER REMOVAL/INSTALLATION.) (See TWEETER INSPECTION.)
24	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
25	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.) (See Bluetooth® PAIRING PROCEDURE.) (See MAINTENANCE MONITOR OPERATION PROCEDURE [TYPE-A].) (See VEHICLE STATUS MONITOR SETTING [TYPE-B].)

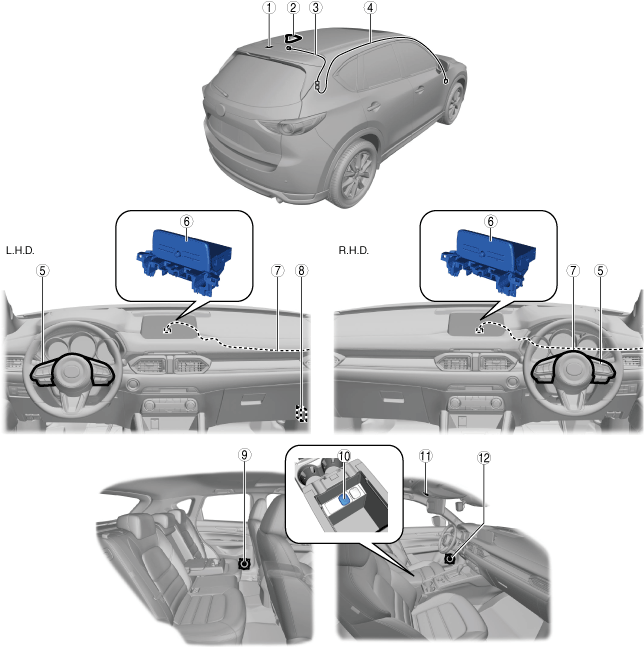

Without Center Display

ac5wzw00015167

1	Condenser (See CONDENSER REMOVAL/INSTALLATION.)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.) (See CENTER ROOF ANTENNA INSPECTION.)
3	Antenna feeder No.3 (See ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.3 INSPECTION.)
4	Antenna feeder No.2 (See ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.2 INSPECTION.)
5	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.) (See STEERING SWITCH INSPECTION.)
6	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)
7	Antenna feeder No.1 (See ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION.) (See ANTENNA FEEDER NO.1 INSPECTION.)
8	Bluetooth® unit (See Bluetooth® UNIT REMOVAL/INSTALLATION.) (See Bluetooth® PAIRING PROCEDURE.)
9	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER INSPECTION.)
10	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION.) (See AUXILIARY JACK/USB PORT INSPECTION.)
11	Microphone (See MICROPHONE REMOVAL/INSTALLATION.)
12	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See FRONT DOOR SPEAKER INSPECTION.)
