FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION.)

(5)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

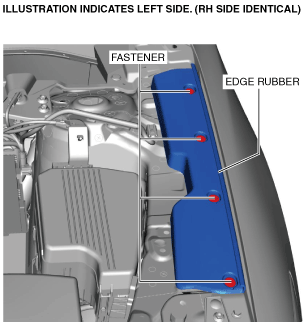

3.  Remove the fasteners.

ac8wzw00000854

4.  Remove the edge rubber.

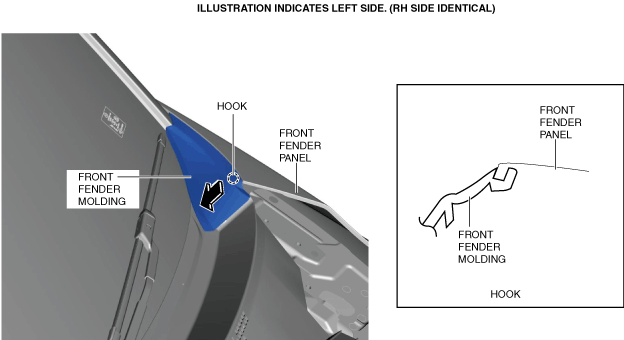

5.  Move the front fender molding in the direction of the arrow shown in the figure and remove the hook.

ac8wzw00000855

6.  Move the front fender molding in the direction of the arrow shown in the figure and remove hook B.

ac8wzw00000856

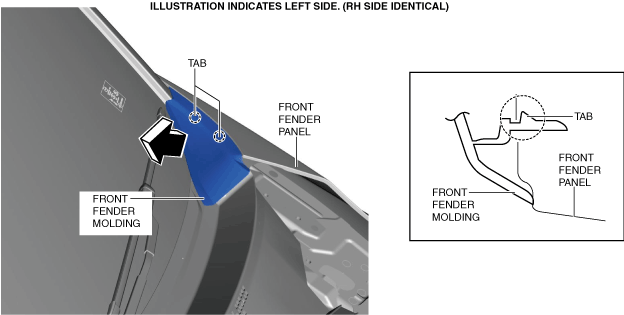

7.  Move the front fender molding in the direction of the arrow shown in the figure and detach the tabs.

ac8wzw00000857

8.  Remove the front fender molding.

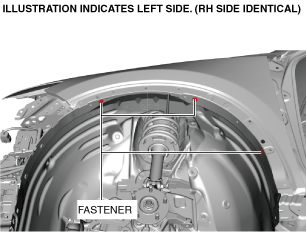

9.  Remove the fasteners.

ac8wzw00000858

10.  Remove the front fender insulator. (See FRONT FENDER INSULATOR REMOVAL/INSTALLATION.)

11.  Open the front door.

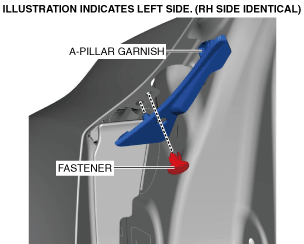

12.  Remove the fasteners.

ac8wzw00000859

13.  Remove the A-pillar garnish.

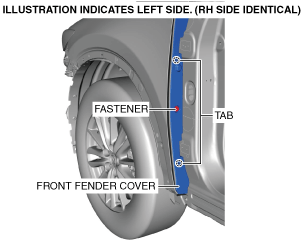

14.  Remove the fasteners.

ac8wzw00000860

15.  Detach the tabs.

16.  Remove the front fender cover in the direction of the arrow shown in the figure.

ac8wzw00000861

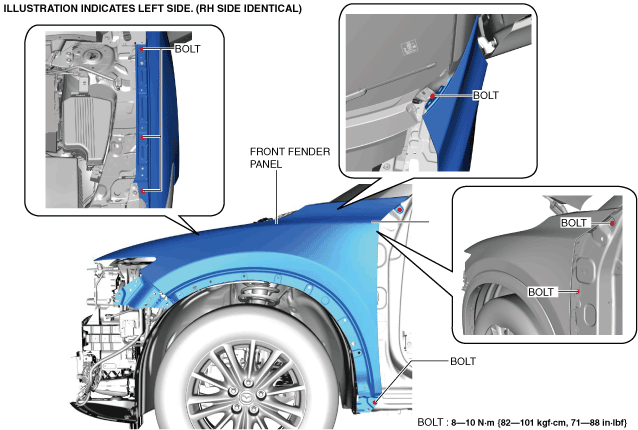

17.  Remove the bolts.

ac8wzw00000862

18.  Remove the front fender panel.

19.  Install in the reverse order of removal.

20.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)
