REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION

id091800025100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk side trim from the body. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

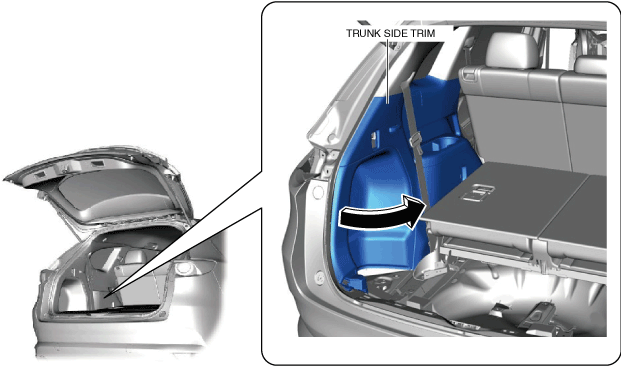

4.  Move the trunk side trim in the direction of the arrow and secure an operation space.

ac8wzw00003129

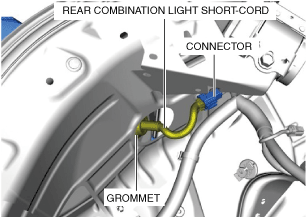

5.  Disconnect the connectors.

ac8wzw00003130

6.  Push out the grommet from the inside to the outside.

7.  Remove the rear combination light short cord.

8.  Install in the reverse order of removal.
