REAR MOUNT CAMERA INSPECTION

id092000815000


Without 360°view monitor system

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
(4)  Power liftgate (PLG) rear switch (with power liftgate (PLG) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)
(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)
(7)  Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)

3.  Prepare four dry cell batteries (1.5 V)

4.  Connect the four dry cell batteries in a series.

ac5wzw00005108

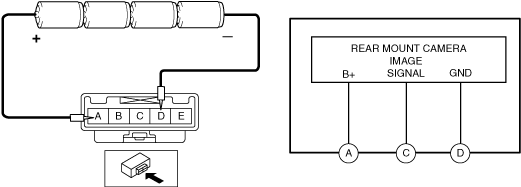

5.  Connect the positive pole of the dry cell battery to rear mount camera terminal A, and the negative pole to terminal D.

ac8wzw00002215

6.  With the cell batteries being connected, measure the waveform between rear mount camera terminal C and terminal D.

7.  Verify that waveform A shown in the figure is displayed two times or more.

ac5wzw00010245

8.  If the voltage is not as shown in the figure, replace the rear mount camera. (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)


With 360°view monitor system

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)
(4)  Power liftgate (PLG) rear switch (with power liftgate (PLG) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)
(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)
(7)  Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)

3.  Prepare four dry cell batteries (1.5 V)

4.  Connect the four dry cell batteries in a series.

ac5wzw00005108

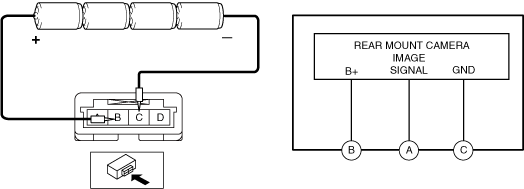

5.  Connect the positive pole of the dry cell battery to rear mount camera terminal B, and the negative pole to terminal C.

ac8wzw00001263

6.  With the cell batteries being connected, measure the waveform between rear mount camera terminal A and terminal C.

7.  Verify that waveform A shown in the figure is displayed two times or more.

ac5wzw00010245

8.  If the voltage is not as shown in the figure, replace the rear mount camera. (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)
