REAR ACCESSORY SOCKET INSPECTION

id092100901000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION.)

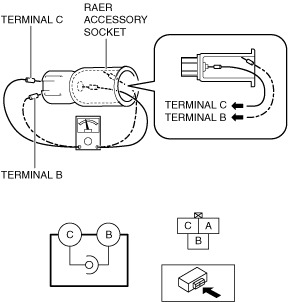

3.  Connect the tester probe to the position shown in the figure and verify that there is continuity.

ac5wzw00011010

ac8wzw00001339

•  If it cannot be verified, replace the rear accessory socket. (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION.)
