HVAC CONTROL SYSTEM LOCATION INDEX

id074000803600

L.H.D.

ac9wzw00002803

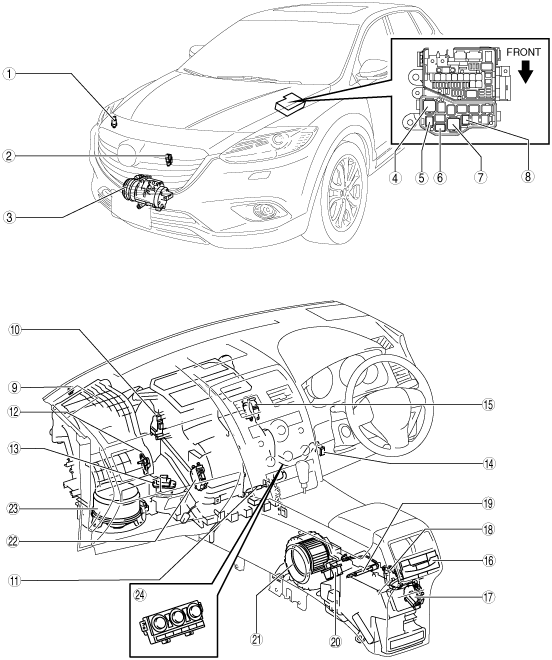

R.H.D.

ac9wzw00002804

1	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.) (See REFRIGERANT PRESSURE SENSOR INSPECTION.)
2	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See AMBIENT TEMPERATURE SENSOR INSPECTION.)
3	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY.) (See MAGNETIC CLUTCH CLEARANCE INSPECTION.) (See MAGNETIC CLUTCH INSPECTION.)
4	Front blower relay (See RELAY INSPECTION.)
5	Rear window defroster relay (See RELAY INSPECTION.)
6	A/C relay (See RELAY INSPECTION.)
7	Rear blower relay (See RELAY INSPECTION.)
8	Seat warmer relay (See RELAY INSPECTION.)
9	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.) (See SOLAR RADIATION SENSOR INSPECTION.)
10	Front airflow mode actuator (See FRONT AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIRFLOW MODE ACTUATOR INSPECTION.)
11	Front evaporator temperature sensor (See FRONT EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See FRONT EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
12	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION.) (See AIR INTAKE ACTUATOR INSPECTION.)
13	Front power MOS FET (See FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION.) (See FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION.)
14	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See CABIN TEMPERATURE SENSOR INSPECTION.)
15	Driver-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
16	Rear climate control unit (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See REAR CLIMATE CONTROL UNIT INSPECTION.)
17	Rear airflow mode actuator (See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIRFLOW MODE ACTUATOR INSPECTION.)
18	Rear air mix actuator (See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See REAR AIR MIX ACTUATOR INSPECTION.)
19	Rear evaporator temperature sensor (See REAR EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.) (See REAR EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
20	Rear power MOS FET (See REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION.) (See REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION.)
21	Rear blower motor (See REAR BLOWER MOTOR REMOVAL/INSTALLATION.) (See FRONT BLOWER MOTOR INSPECTION.)
22	Passenger-side front air mix actuator (See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.) (See FRONT AIR MIX ACTUATOR INSPECTION.)
23	Front blower motor (See FRONT BLOWER MOTOR REMOVAL/INSTALLATION.) (See FRONT BLOWER MOTOR INSPECTION.)
24	Front climate control unit (See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.) (See FRONT CLIMATE CONTROL UNIT INSPECTION.)
