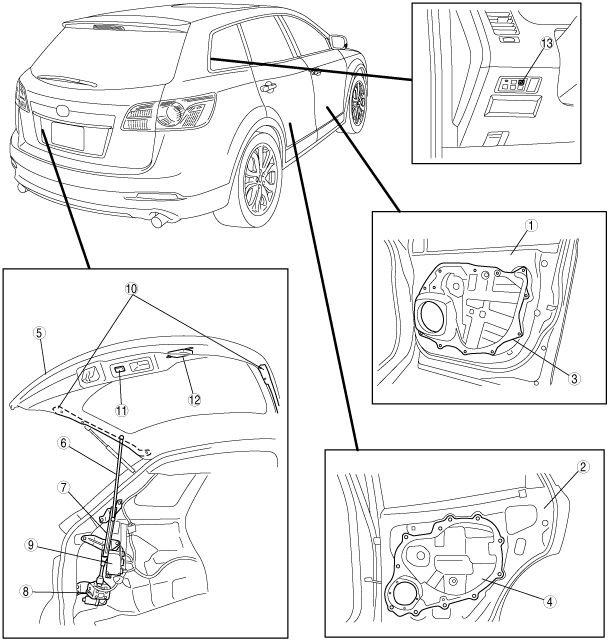

DOOR AND LIFTGATE LOCATION INDEX

id091100520000

ac9wzw00002898

1	Front door (See FRONT DOOR REMOVAL/INSTALLATION.) (See FRONT DOOR CHECKER REMOVAL/INSTALLATION.) (See FRONT DOOR HINGE REMOVAL/INSTALLATION.) (See DOOR ADJUSTMENT.)
2	Rear door (See REAR DOOR REMOVAL/INSTALLATION.) (See REAR DOOR CHECKER REMOVAL/INSTALLATION.) (See REAR DOOR HINGE REMOVAL/INSTALLATION.) (See DOOR ADJUSTMENT.)
3	Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
4	Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)
5	Liftgate (See LIFTGATE REMOVAL/INSTALLATION.) (See LIFTGATE HINGE REMOVAL/INSTALLATION.)
6	PLG arm (See POWER LIFTGATE (PLG) ARM REMOVAL/INSTALLATION.)
7	PLG slider (See POWER LIFTGATE (PLG) SLIDER REMOVAL/INSTALLATION.)
8	PLG drive unit (See POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION.)
9	PLG control module (See POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) CONTROL MODULE INSPECTION.)
10	PLG touch sensor (See POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) TOUCH SENSOR INSPECTION.)
11	PLG rear switch (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) REAR SWITCH INSPECTION.)
12	PLG buzzer (See POWER LIFTGATE (PLG) BUZZER REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) BUZZER INSPECTION.)
13	PLG front switch (See POWER LIFTGATE (PLG) FRONT SWITCH REMOVAL/INSTALLATION.) (See POWER LIFTGATE (PLG) FRONT SWITCH INSPECTION.)
