FRONT STABILIZER REMOVAL

id021300700800

Caution
•  If the front ABS wheel-speed sensor wiring harness is pulled by mistake when performing this procedure, it could cause open circuit. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
•  If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged. After disconnecting the steering shaft, secure the steering wheel using tape or cable to prevent it from rotating.
•  Do not allow the dust boot of the front stabilizer control link to touch the body, the front shock absorber and coil spring, and the hand tool. Otherwise, the dust boot of the front stabilizer control link could be damaged.

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

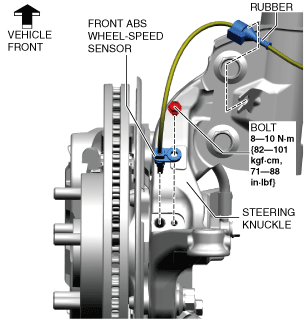

2.  Disconnect the rubber from the front shock absorber.

a30zzw00000792

3.  Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.

4.  Remove the following parts.

(1)  Front undercover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(2)  Front undercover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
(3)  Gusset. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
(4)  Floor under cover No.1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
(5)  Guard component. (See GUARD COMPONENT REMOVAL/INSTALLATION .)

5.  Disconnect the tie-rod end from the steering knuckle. (See TIE-ROD END REMOVAL/INSTALLATION.)

6.  Remove the front stabilizer control link. (See Front Stabilizer Control Link Removal Note.)

a30zzw00000856

7.  Disconnect the front lower arm ball joint from the steering knuckle. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

8.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

9.  Remove the fasteners shown in the figure and slightly bend back the front over fender.

a30zzw00001714

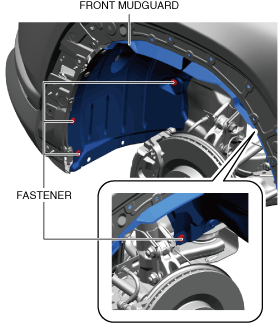

10.  Remove the fasteners shown in the figure and slightly bend back the front mudguard.

a30zzw00001715

11.  Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

12.  Remove the joint cover. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)

13.  Disconnect the intermediate shaft (lower side) from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)

14.  Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

15.  Remove the hole cover No.1 and hole cover No.2. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

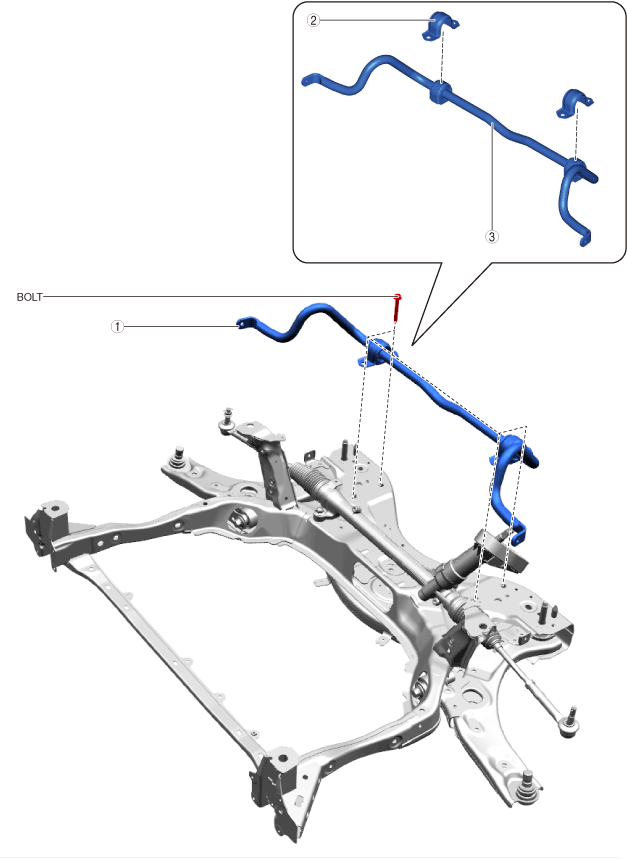

16.  Remove in the order shown in the figure.

a30zzw00000796

1
Front stabilizer component
2
Front stabilizer bracket
(See Front Stabilizer Bracket Removal Note.)
3
Front stabilizer


Front Stabilizer Control Link Removal Note

Caution
•  Use a hand tool when removing the nuts. Otherwise, the front stabilizer control link ball joint could be damaged.

1.  Insert a hexagon wrench into the ball joint stud.

2.  Remove the nuts so that the ball joint does not rotate.


Front Stabilizer Bracket Removal Note

1.  If the front stabilizer bracket cannot be removed by hand, remove it using a vise.

ac8wzw00001926

Caution
•  The front stabilizer bracket may deform if it is removed using a vise. When removing the front stabilizer bracket using a vise, secure the front stabilizer bracket flange to the vise as shown in the figure, then remove it.
