DTC B152F:15 [DASH-ELECTRICAL SUPPLY UNIT]

id0702k8708700

Outline

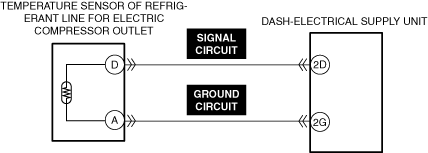

System malfunction location

Malfunction of circuit of temperature sensor of refrigerant line for electric compressor outlet

Detection condition

•  The dash-electrical supply unit detects an open circuit in the circuit of the temperature sensor of refrigerant line for electric compressor outlet.

Fail-safe

•  Fixes the temperature sensor of refrigerant line for electric compressor outlet input value at 150 °C {302 °F} and performs control.

Possible cause

•  Malfunction of connector or terminal of temperature sensor of refrigerant line for electric compressor outlet

•  Dash-electrical supply unit connector or terminal malfunction

•  Open circuit of signal circuit of temperature sensor of refrigerant line for electric compressor outlet

•  Open circuit of ground circuit of temperature sensor of refrigerant line for electric compressor outlet

•  Malfunction of temperature sensor of refrigerant line for electric compressor outlet

•  Dash-electrical supply unit malfunction

System malfunction location	Malfunction of circuit of temperature sensor of refrigerant line for electric compressor outlet
Detection condition	• The dash-electrical supply unit detects an open circuit in the circuit of the temperature sensor of refrigerant line for electric compressor outlet.
Fail-safe	• Fixes the temperature sensor of refrigerant line for electric compressor outlet input value at 150 °C {302 °F} and performs control.
Possible cause	• Malfunction of connector or terminal of temperature sensor of refrigerant line for electric compressor outlet • Dash-electrical supply unit connector or terminal malfunction • Open circuit of signal circuit of temperature sensor of refrigerant line for electric compressor outlet • Open circuit of ground circuit of temperature sensor of refrigerant line for electric compressor outlet • Malfunction of temperature sensor of refrigerant line for electric compressor outlet • Dash-electrical supply unit malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

MALFUNCTION OF CONNECTOR OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

INSPECT DASH-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT SIGNAL CIRCUIT OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT GROUND CIRCUIT OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR MALFUNCTION

•  Inspect the applicable part.
(See TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET INSPECTION [FULL-AUTO AIR CONDITIONER].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See TEMPERATURE SENSOR OF AIR FOR PTC/TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for dash-electrical supply unit.
(See DTC INSPECTION.)

•  Is the same DTC displayed?

Yes

Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction is not resolved, replace the dash-electrical supply unit, then go to the next step.
(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs ARE DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	MALFUNCTION OF CONNECTOR OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
1		No	Repair or replace the malfunctioning location and perform the repair completion verification.
2	INSPECT DASH-ELECTRICAL SUPPLY UNIT CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT SIGNAL CIRCUIT OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT GROUND CIRCUIT OF TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET FOR MALFUNCTION • Inspect the applicable part. (See TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET INSPECTION [FULL-AUTO AIR CONDITIONER].) • Is the part normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See TEMPERATURE SENSOR OF AIR FOR PTC/TEMPERATURE SENSOR OF REFRIGERANT LINE FOR ELECTRIC COMPRESSOR OUTLET REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for dash-electrical supply unit. (See DTC INSPECTION.) • Is the same DTC displayed?	Yes	Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction is not resolved, replace the dash-electrical supply unit, then go to the next step. (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs ARE DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
