REAR BUMPER BRACKET REMOVAL/INSTALLATION

id091000041700

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Set the trunk side trim aside. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the following parts:

(1)  Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION.)

(2)  Rear combination lights (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(3)  Rear over fender (See REAR OVER FENDER REMOVAL/INSTALLATION.)

(4)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(5)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

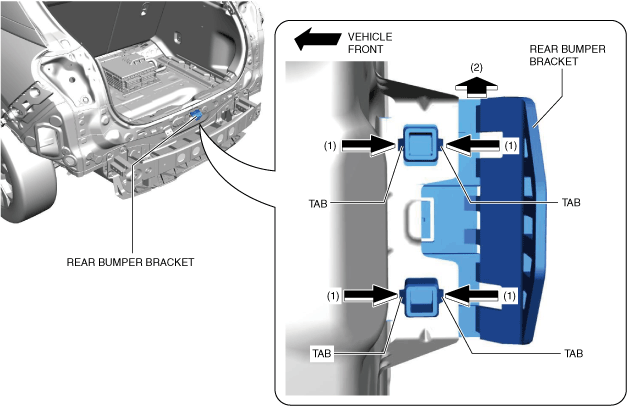

5.  While pressing the rear bumper bracket tabs in the direction of arrows (1) shown in the figure, move the rear bumper bracket in the direction of arrow (2) and remove it.

a30zzw00000487

6.  Install in the reverse order of removal.

7.  Perform the rear side radar sensor aiming. (See REAR SIDE RADAR SENSOR AIMING.)
