REAR SEAT BACK TRIM INSTALLATION

id091300303400

Caution

•  When removing the rear seat and taking it out of the vehicle or when entering the vehicle, the work must be performed by two or more people because contact with the surrounding areas of the vehicle could cause scratches and damage.

•  When performing the procedure with a rear seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

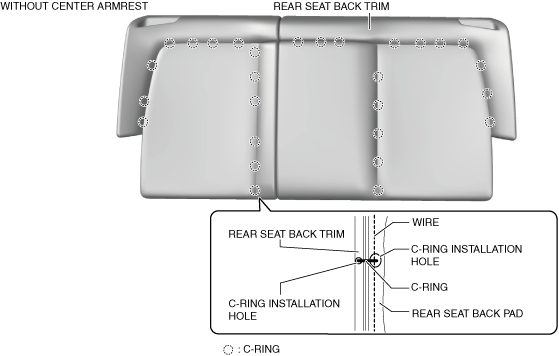

1.  Align the C-ring installation holes in the rear seat back trim with the same holes in the rear seat back pad and install the C-rings shown in the figure.

a30zzw00003023

a30zzw00006825

Caution

•  If a C-ring is damaged when removing or installing the rear seat back trim and the rear seat back pad, it may not be possible to correctly install the rear seat back trim and the rear seat back pad. When removing or installing the rear seat back trim and the rear seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Note

•  The positions and number of C-rings differ depending on the type of seat.

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

am3zzw00036687

2.  Press the surface fasteners from the surface of the rear seat back trim and install the rear seat back pad.

3.  Press the rear seat back pad inward while pulling the rear seat back trim outward.

am3zzw00036688

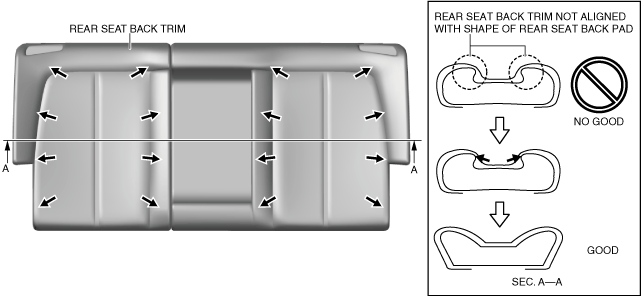

4.  Align the rear seat back trim with the shape of the rear seat back pad while pressing the rear seat back pad outward.

a30zzw00004559

5.  Install the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

6.  Install the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

7.  When installing the rear seat back (LH), perform the following procedure.

(1)  Install the rear center seat belt anchor. (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(2)  Install the rear buckle (LH). (See REAR BUCKLE REMOVAL/INSTALLATION.)

(3)  Connect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

8.  Install the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

9.  Install the head restraints.
