REAR SEAT BELT REMOVAL/INSTALLATION

id081100700500

Warning

<<High voltage>>

• Vehicles damaged in an accident could have electrical leakage due to internal damage of the high voltage battery. If servicing is carried out under electrical leakage conditions, it could cause electrical shock and result in serious injury or, in the worst case, death.

• Refer to [Handling high voltage battery on damaged vehicle] in [DAMAGED VEHICLE HANDLING] in the general information and determine if an internal inspection of the high voltage battery is necessary.(See DAMAGED VEHICLE HANDLING [(E)].) Perform servicing only if an internal inspection of the high voltage battery is unnecessary. If it is determined that an internal inspection of the high voltage battery is necessary, contact the technical assistance for your market without performing servicing.

Warning

• Incorrect handling of the front seat belt (front pre-tensioner seat belt) may cause the pre-tensioner to activate (deploy) unexpectedly and cause injury. Read the SRS air bag system service warnings and cautions before handling a front seat belt (front pre-tensioner seat belt).(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

• The side air bag sensor is installed below the rear door. When working around the rear door, disconnect the battery negative terminal and do not apply excessive impact to the inside of the rear door.

Caution

• If the retractor is disassembled, it will not activate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1. Switch the main power OFF.

2. Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

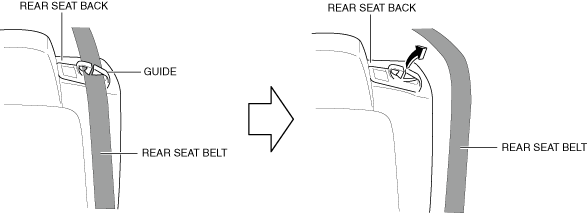

3. Remove the rear seat belt from the guide.

a30zzw00002570
